It is a portable darkroom design with a range of 3200-4000 A.U. for viewing paper & inspection chromatographs. It has a Wavelength of 254nm (Short wave) & 365nm (Longwave) and is suitable for other gross studies of fluorescence effects. Chamber Size: 330 x 220 x 235 mm

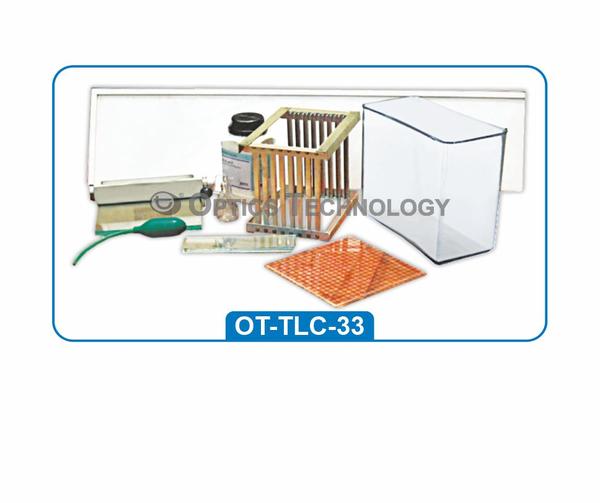

The Thin Layer applicator gives dependable service in drawing thin uniform layer variables from 0 to 2 mm. (Minimum thickness attainable 0.1 mm.) Accurate design and skilled workmanship of the applicator gives no trouble in coating several plates at a time. It is made up of Aluminium finished in proper shape. Applicator: Drawing Board, Drying Rack, Spotting Guide, Developing Chamber, Glass Pipette, Silica Gel, Glass Plates & Glass Jar.

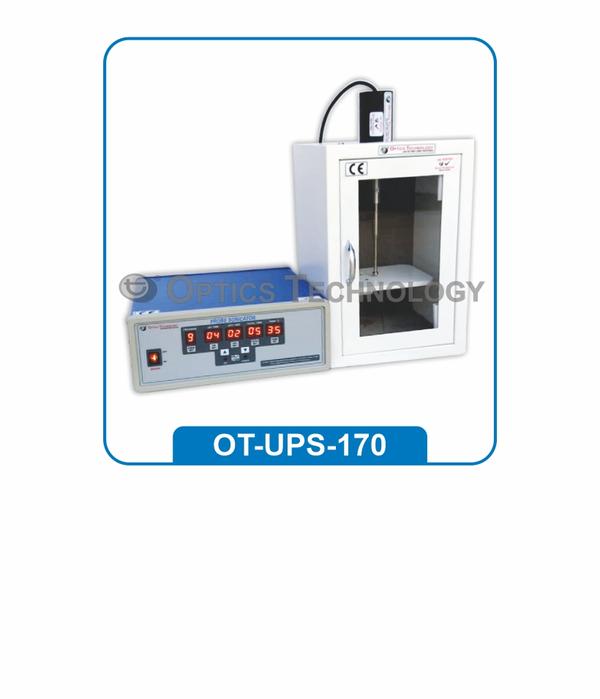

Ultrasonic Generation to produce High Electrical Energy operating at frequency of 20 Khz and an Ultrasonic Power 120 watts. S.S. Velocity Horn fitted with PZT Crystals (Transducer Elements). This Velocity Horn assembly converts the electrical frequency energy fed from the Ultrasonic generation to mechanical vibrations at the rate of applied electrical frequency. The amplitude of these mechanical vibrations are magnified by this velocity Horn. Sound Proof Box

“Optics Technology” Homogenizer are light weight & hand held design that can be easily operated by single hand with less strain during long period of operations. Working Principle: The sample circularly loop into a narrow space between the high speed and relative motion stator to shear and break the sample. E.g. tissue such as muscle, liver, breast etc. Can be completely homogenization is 10-30 seconds. Parameters: Type : Hand Held Homogenizer Power Supply : 230V/50/60HZ Power (Input/Output) : 110W Rotor Line Speed : 6.3-14m/sec Net Weight : 0.7kg Noise : 72dB(A) Speed Control Range : 8000-35000rpm (digital display) Capacity : 1-100ml

This lightweight micro stirrer is ideal for use with tissue grinders having stainless steel shaft. Supplied complete with a stirrer/controller, tripod with a vertical support rod, clamp holder and a coupling Teflon paddle. With Tissue Flask (max. Speed 4,000-10,000 RPM with variable speed regulator). Model No. Capacity OT-MTH-172-A 10 ml OT-MTH-172-B 30 ml OT-MTH-172-C 50 ml OT-MTH-172-D 100 ml

The instrument is designed for accurate estimation of disintegration time of tablets/capsules. It is assembled in painted sheet metal cabinet with chemical resistant epoxy coating, fitted with superior quality constant speed sturdy motor. The guide discs and strokes are confirming to Pharmacopoeia Standards. (Body is made of M.S. Duly Powder Coated / SS 304 Body). Specifications: Displacement : 55mm RPM : 30 Drive : 1/8 HP Heater : 125 watt. Power : 230 V AC Single Phase Optional: Digital Time Totalizer Water bath System Instead of Hot Plate with Thermostatics Temperature Controller Microprocessor Based PID Controller (Only with Water bath model).

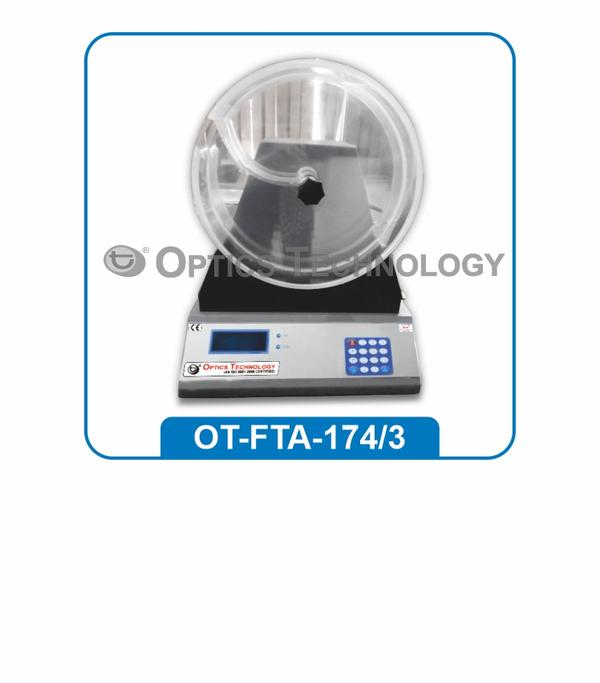

The apparatus is designed to determine the abrasion rate and impact hardness of tablets. One/Two transparent acrylic drums rotated by superior quality constant speed sturdy motor, mounted in painted sheet metal cabinet with chemical resistant epoxy coating. (Body is made of M.S. Duly Powder Coated / S.S. 304). Special Features: Realistic abrasion rate is obtained by pre-set revolutions through a pilot lamp as compared to time setting, where voltage fluctuation may change number of revolution in pre-set time. Specification: Drum Diameter : 285mm Tablet Fall Distance : 140mm Drive : 1/8 HP Power : 230 V AC Single Phase

(Front Loading with Auto Discharge Type Loading and unloading of tablets without removing Drums) Technical Details: ➤ Speed of Drums 20 - 60 RPM ➤ No. of Drums 2 No. ➤ Display 20×4 Alphanumeric LCD ➤ Weight 12 Kgs

The apparatus is suitable for testing of Dissolution rate of tablet and capsule, it consists of main transparent acrylic tank housing. Thermostatically/ Digitally controlled immersion heater, drain cock and transparent hemispherical unbreakable vessel. The base unit is made of chemical resistant powder coated sturdy frame housing, Control panel which includes Electronic regulator and thermostat. An electronic motor is mounted on chrome plated rod, operates Paddle/Basket. (Body is Available in M.S. / S.S. 304). Optional: Digital RPM Indicator Digital Timer Microprocessor Based PID Controller

The unit is equipped with acrylic water bath controlled by digital temperature controller which is normally set at 37ºC and duly fitted with pump which recirculates the water thus maintaining homogeneous temperature. The acrylic water bath is with digital timer can be set ranging from 1 to 999 minutes add it “BEEPS” at the end of the set time. The unit is equipped with Digital setting of RPM as an optional which can be controlled from 25 to 150 RPM. The equipment is duly fitted with motorized lifting to facilitate easy operation of the stirrers’ assembly. Digital dissolution rate test apparatus is equipped With Digital RPM Indicator – Range 25 to 150 RPM Digital Timer – Range 1 to 999 minutes Digital temperature indicator – Range 30ºC to 50ºC Body is available M.S. / S.S. 304

Features: •Touch screen touch key pad for easy operation. • Nineteen No. routine test set & Five Nos. sustain release test set in memory. • Online print out facility. • Water circulation for uniform temperature. • Up Down motorized lifting with limit switch. • Vibration free drive with electronic motor. • Body is available M. S./S. S. 304

A handy, tough and direct dial reading type tablet hardness tester, working as pair of plairs, generates breaking force in single grip. The instrument offers accurate and reproducible result much faster other conventional hardness tester.
