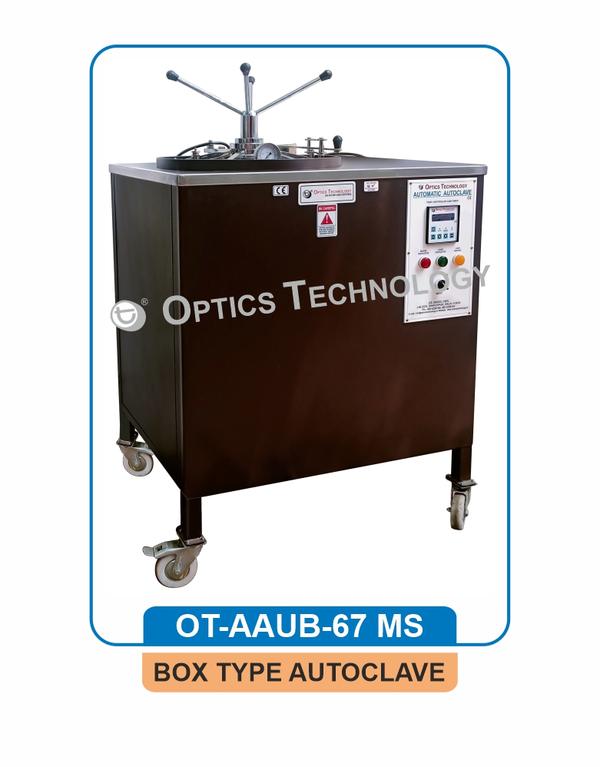

Inner chamber is made of thick Stainless Steel (304).
Outer body is made of thick Mild Steel / Stainless Steel 304.
The chamber is absolutely leak proof and can be operated at any Selected point in between 5 to 20 pounds per sq. Inch. It is provided with pressure gauge, pressure release valve, S.S. Basket, safety valve, water level indicator with cord, Plug & Pressure Control Switch. It is provided with Radial Locking System with Automatic Water Level cut off device for element as a safety feature and Digital Temp. Controller Cum Timer. Temperature Range 121ºC
Provided with microprocessor based LCD Display with Digital Temp. Controller Cum Timer system for setting temperature, purge time, exhaust time etc. Autoclave is controlled with the settings on this controller.
Optional:
1. Vacuum Breaker Valve
2. Calibration Port
3. Safety Alarm
4. Specially Designed Lid Locking System To Make Sure Lid is Locked Properly
5. Single channel data logger system
(Only With Automatic Model)
6. Printing System With Thermal Printer
7. 21 CFR Software
8. Automatic System (Only for Normal Autoclave Vertical Model)
OR
Microprocessor Based Automatic Touch Screen Display System With Data Logging
It consist of an inbuilt prefilter & very high exchanging capacity non-corrosive CATION & ANION Resin, columns prefilled with imported Resins for efficient results having treated water parameters. Fitted with a sturdy PVC multi control valve & can be connected direct to water taps. Fitted with analog / digital conductivity meter. Supplied with one plastic chemical proof regeneration tank & the complete unit is housed in a painted M.S. trolly for easy mobility.
Features:
• Digital Display
• Non corrosive Regeneration Tank
•In Built Pre filter
High capacity Cation and Anion exchange resins.
Upflow treatment.
Easily portable - metal stand and trolley
Can be connected direct to Water Tap.
Simple Periodic regeneration - negligible operating costs.
Digital model is fitted with digital conductivity meter.
Treated water will have the conductivity less than 10 ms/cm and pH of 7.5-9
• Available in Double Bed, Four bed and Mixed bed models
Capacity:
50 Ltrs / Hr.
70 Ltrs / Hr.
100 Ltrs / Hr.
200 Ltrs / Hr.
500 Ltrs / Hr.
The vacuum pump functions by removing the molecules of air and other gases from the vacuum chamber. It is available in single-stage & Double Stage with oil & belt Motor System. It is designed for accurate measurement of melting points and for checking the melting range of the solid samples & boiling points also.
TWO-STAGE VANE PUMP
To improve the backing pressure and displacement at low pressure two stages are connected in series.
ANTI-SUCKBACK SYSTEM
If the Power Supply fails on stops, an anti-suck back device. Prevents air or oil the pump to be drawn back into the chamber being evacuated and operated by Solenoid coil.
GAS BALLAST
The gas ballast allows a quantity of air to be injected into the second stage of the pump during compression to reduce the partial pressure to the pumped gas below its saturated Vapour pressure and thus prevent condensation.
The saturated vapour pressure of a gas is higher when it is hot and lower when it is cold.
When gas ballasting is in use, there will be increase in ultimate pressure of the pump as well as the temperature.
Power : 230V AC supply
Optional:
Moisture Trap
Non Return Valve
Vacuum Gauge
Air Oil Mist Exhaust Filter
ULTRA HIGH VACUUM PUMP (DIRECT DRIVEN BELTLESS PUMP)
Specifications:

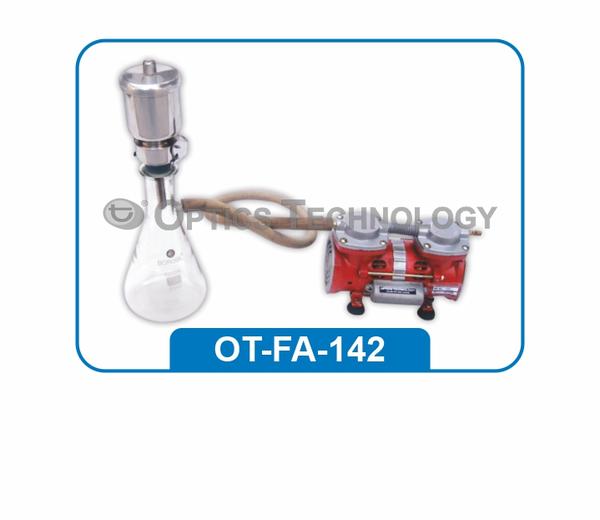

Filtration assembly consisting of S.S. Filter Holder Suitable for filter dia 47 mm.
Borosil Glass filtration flask capacity (1Ltr.), Vacuum Pipe & Oil Free Vacuum pump
Without filter paper

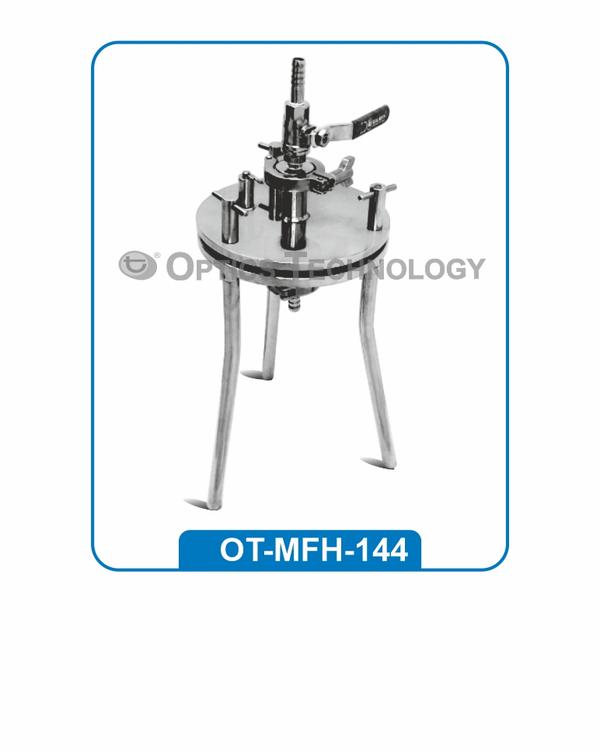

Sterility testing is required to ensure viable contaminating microorganisms are not evident in a product. Unit is made of S.S. 316 with SS Valve. For excellent chemical resistance and can be fastly sterilized by flame, steam, and oven. We provide a fully leak Proof Platform. Light Weight to handle without Vacuum Pump and without Filter Paper.
(S.S. 316 BODY)
Seal membrane by hand tightening locking wing nuts, optimal holder designed to minimizes resistance and maximizes flow rate.
Applications:
Use in line for filtering gases or liquids
Use with pressure vessel for batch type operations
