Applications include isolation and indentification of plant/human pathogens, work in virology, tissue culture, sterility testing and recombinant DNA research. This Biohazard Cabinet offers operator protection from low to moderate risk biological agents (or chemical carcinogens), while providing a sterile work environment for the procedure. The cabinet is kept under negative pressure with partial quantity of recirculated air exhausted through a HEPA filter. External exhaust from the laboratory is optional. The Biological Safety Cabinet is similar in performance and specification to the Vertical Series, described on reserse. The additional main features are as under:- Specially suited for Pathogenic work, chemical work, critical biological work involging virus and pathogens & for microbiology, biochemistry etc. Standard S.S. Perforated table. Imported Mini Pleat HEPA of 0.3 µ of an efficiency of 99.97% down to 0.3 micron Media is of glass fiber & made of pleats back & fro in an anodized aluminum frame (With Test Report). Integral powerful exhaust system. Built-in-positive Air Curtain effect to prevent inside air from going out and room air from entering in, providing total process and operator safety. Exhaust ducting to carry the air outside. Front sliding door, U.V. light, Manometer, Gas cock etc. Mini Pleat HEPA Filter in Exhaust. Virus Burn out Unit in Exhaust. FACE VELOCITY: A face velocity of 90±20 FPM is maintained. Optional: Magnahelic Gauge in place of Static Pressure Manometer. Digital Manometer U.V. Resistant Poly Carbonate sheet in place of Acrylic Sheet. LCD display with soft touch switches for Motor, U.V. Light, F.V. Light & U.V. Timer Gloves Port (Without Gloves) Automatic motorised front door lifting arrangement Online transfer of data without any cable/wire Interference MICROPROCESSOR BASED TOUCH SCREEN DISPLAY SYSTEM Display of velocity with lower and upper safe limits. Display of total run time of instrument & timer for U.V. lamp. Control of U.V. light to prevent the operator from U.V. rays as and when required. Automatic Door sensors to switch off the U.V. light when door is opened. Display of message for life of HEPA filter, U.V. light etc.

“OPTICS TECHNOLOGY” Class III Bio safety cabinet offers the highest level of operator, product and environmental protection from infectious/biohazardous aerosols and is suitable for microbiological work. Designed for an absolute level of containment, it is frequently used for work involving the deadliest bio-hazards. A Class III cabinet is defined as a totally enclosed, ventilated cabinet with leak-tight construction it is also called glove boxes. The cabinet is maintained under negative pressure and supply air is drawn in through HEPA filters. A supply of HEPA filtered air provides product protection and prevents cross contamination of samples while exhaust air is HEPA-filtered and incinerated. Key Benefits: Safer dual main with 100% exhaust filters Exclusive dual main exhaust filters provide > 100.000 times better protection than single-stage designs. An integrated pass-through with interlocking doors permits materials transfer without risk of environmental contamination. An angled cabinet front ensures a comfortable working posture. Energy Efficient Blowers Optional: 1. Magnahelic Gauge in place of Static Pressure Manometer. 2. Digital Manometer 3. U.V. Resistant Poly Carbonate sheet in place of Acrylic Sheet. 4. LCD display with soft touch switches for Motor, U.V. Light, F.V. Light & U.V. Timer 5. Imported Gloves 6. Automatic motorised front door lifting arrangement 7. Online transfer of data without any cable/wire Interference MICROPROCESSOR BASED TOUCH SCREEN DISPLAY SYSTEM Display of velocity with lower and upper safe limits. Display of total run time of instrument & timer for U.V. lamp Control of U.V. light to prevent the operator from U.V. rays as and when required. Automatic Door sensors to switch off the U.V. light when door is opened. Display of message for life of HEPA filter, U.V. light etc. With Glove Port (Without Gloves) Outer Body: Wooden / Mild Steel Duly Powder Coated / Stainless Steel (S.S. 304)

Inner chamber is made of thick stainless steel (304). Outer body is made of thick Mild Steel Duly Powder Coated / Stainless Steel 304. The chamber is absolutely leak proof and can be operated at any Selected point in between 5 to 20 pounds per sq. Inch. It is provided with pressure gauge, pressure release valve, S. S. Tray, safety valve, water level indicator with cord, Plug & Pressure Control Switch. It is provided with Radial Locking System with Automatic Water Level cut off device for element as a safety feature and with Digital Temperature Controller cum Timer. Optional : Vacuum Breaker Valve Calibration Port Safety Alarm Specially designed Lid locking system to make sure lid is locked properly Single Channel Data Logger System (Only with Automatic model) Printing system with thermal printer 21 CFR Software Automatic System OR Microprocessor Based Touch Screen Display system

nner chamber is made of thick Stainless Steel (304). Outer body is made of thick Mild Steel / Stainless Steel 304. The chamber is absolutely leak proof and can be operated at any Selected point in between 5 to 20 pounds per sq. Inch. It is provided with pressure gauge, pressure release valve, S.S. Basket, safety valve, water level indicator with cord, Plug & Pressure Control Switch. It is provided with Radial Locking System with Automatic Water Level cut off device for element as a safety feature and Digital Temp. Controller Cum Timer. Temperature Range 121ºC ptional: Vacuum Breaker Valve Calibration Port Safety Alarm Specially designed Lid locking system to make sure lid is locked properly Single channel data logger system (Only with Automatic Model) Printing System with Thermal Printer 21 CFR Software Automatic System (Only for Normal Autoclave Vertical Model) OR Microprocessor Based Automatic Touch Screen Display System with Data Logging

Electrically Operated Centrifuge Speed 1100 RPM Approx Working Temp. – 65°C Capacity 8 Test Inbuilt Heater Digital RPM Meter Digital Temperature Controller Digital Timer Push Brake Interlocking Safety Feature Transplant Acrylic Lid.

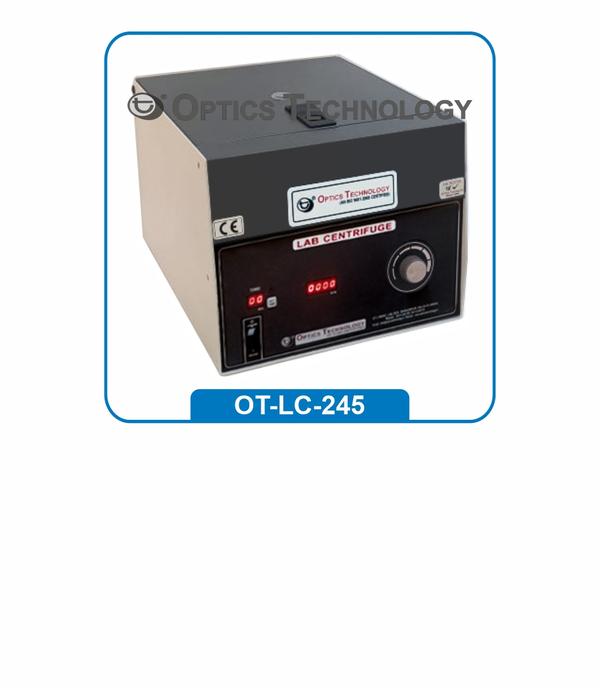

(General Purpose for R & D Laboratories) And also used for determination of Insolubility Index for Dairy Milk products. SPECIAL FEATURES : Easy lid lock, Speed regulator, safety Fuse. Elegant front panel. With a wide choice of rotor heads and adaptors this unit is truly versatile. Digital RPM Indicator and Digital Timer. Supplied with Rotar Head having 4 x 50 ml.

Special Features: Easily operated electronic lid lock, Speed regulator, safety Fuse. Elegant front panel. With a wide choice of rotor heads and adaptors this unit is truly versatile. Digital RPM Indicator and Digital Timer. Supplied with Rotar Head having 8 x 15 ml Technical Data: Max. Speed: 4000 OR 5000 RPM

“Optics Technology” manually operated Hydraulic Pallet Press for fast and easy preparation of both solid and highly permeable pellet. Working: The pressure pallet and die arm are located in inner cylinder sample is placed in between polished pressure plates. A Hydraulic Press is then used to apply necessary pressure to the sample via die. Cylinder Type : Single acting, up stroking Weight : 35 kgs Pump Type : Hand Operated Safety Feature : Pressure relief valve to safeguard against applying over-pressure Model Size OT-MHPP-276/10 10mm KBr Die Set (Stainless Steel) OT-MHPP-276/13 13mm KBr Die Set (Stainless Steel)

“Optics Technology” Automatic operated Hydraulic Pallet Press for fast and easy preparation of both solid and highly permeable pellet. Features: Compact design and easy operate Steady pressure building and control release ensures better pellet quality Safety mechanism to avoid over pressure and excessive ram stroke Emergency stop button to cut off electrical supply if required Press is enclosed in a powder coated metallic box which is easily removable for maintenance Tablet Size: 15-20mm
