“OPTICS TECHNOLOGY” Class III Bio safety cabinet offers the highest level of operator, product and environmental protection from infectious/biohazardous aerosols and is suitable for microbiological work. Designed for an absolute level of containment, it is frequently used for work involving the deadliest bio-hazards. A Class III cabinet is defined as a totally enclosed, ventilated cabinet with leak-tight construction it is also called glove boxes. The cabinet is maintained under negative pressure and supply air is drawn in through HEPA filters. A supply of HEPA filtered air provides product protection and prevents cross contamination of samples while exhaust air is HEPA-filtered and incinerated. Key Benefits: Safer dual main with 100% exhaust filters Exclusive dual main exhaust filters provide > 100.000 times better protection than single-stage designs. An integrated pass-through with interlocking doors permits materials transfer without risk of environmental contamination. An angled cabinet front ensures a comfortable working posture. Energy Efficient Blowers Optional: 1. Magnahelic Gauge in place of Static Pressure Manometer. 2. Digital Manometer 3. U.V. Resistant Poly Carbonate sheet in place of Acrylic Sheet. 4. LCD display with soft touch switches for Motor, U.V. Light, F.V. Light & U.V. Timer 5. Imported Gloves 6. Automatic motorised front door lifting arrangement 7. Online transfer of data without any cable/wire Interference MICROPROCESSOR BASED TOUCH SCREEN DISPLAY SYSTEM Display of velocity with lower and upper safe limits. Display of total run time of instrument & timer for U.V. lamp Control of U.V. light to prevent the operator from U.V. rays as and when required. Automatic Door sensors to switch off the U.V. light when door is opened. Display of message for life of HEPA filter, U.V. light etc. With Glove Port (Without Gloves) Outer Body: Wooden / Mild Steel Duly Powder Coated / Stainless Steel (S.S. 304)

Light Weight High Temp. Ceramic Fiber Wool Insulation. Outer Body Double Walled Thick M.S. Body Duly Power Coated Sheet With Step-down Transformer, Silicon Carbide Rod & Microprocessor Based PID Controller.

Light Weight High Temp. Ceramic Fiber Wool Insulation. Outer Body Double Walled with M.S. Duly Powder Coated / Stainless Steel Body (S.S. 304). Heating Elements are of KHANTHAL “A-1” Wire, Temperature Control Unit Consist of Microprocessor based PID controller (Digital LED Display) fitted in front of Furnace, two pilot lamps & mains On/Off switch. Power plug to work on 220 Volts AC.

Triple Walled Working up to 22 PSI to 25 PSI, Working Temp. 121ºC to 134°C. The inner chamber is made of thick Stainless Steel 304, with the steam stock facility. The outer body is made of thick Stainless Steel 304 / M.S. Duly Powder-Coated body, chamber is absolutely Leak Proof Chamber. Fitted with Digital Temp. Controller cum Timer. It is provided with pressure gauge, pressure release valve, Pressure Stat, Safety Valve, With water Level indicator with cord, Plug, Pressure Control Switch, S.S. Lid, Safety Valve for jacket & Dead Weight With wing nut System, With Water Level cut-off device for safety of Heaters. Optional: Vacuum Breaker Valve Calibration Port Safety Alarm 21 CFR Software (Only with touch screen model) Automatic System OR Microprocessor Based Automatic Touch Screen Display system with Data Logging

Inner chamber is made of thick stainless steel (304). Outer body is made of thick Mild Steel Duly Powder Coated / Stainless Steel 304. The chamber is absolutely leak proof and can be operated at any Selected point in between 5 to 20 pounds per sq. Inch. It is provided with pressure gauge, pressure release valve, S. S. Tray, safety valve, water level indicator with cord, Plug & Pressure Control Switch. It is provided with Radial Locking System with Automatic Water Level cut off device for element as a safety feature and with Digital Temperature Controller cum Timer. Optional : Vacuum Breaker Valve Calibration Port Safety Alarm Specially designed Lid locking system to make sure lid is locked properly Single Channel Data Logger System (Only with Automatic model) Printing system with thermal printer 21 CFR Software Automatic System OR Microprocessor Based Touch Screen Display system

nner chamber is made of thick Stainless Steel (304). Outer body is made of thick Mild Steel / Stainless Steel 304. The chamber is absolutely leak proof and can be operated at any Selected point in between 5 to 20 pounds per sq. Inch. It is provided with pressure gauge, pressure release valve, S.S. Basket, safety valve, water level indicator with cord, Plug & Pressure Control Switch. It is provided with Radial Locking System with Automatic Water Level cut off device for element as a safety feature and Digital Temp. Controller Cum Timer. Temperature Range 121ºC ptional: Vacuum Breaker Valve Calibration Port Safety Alarm Specially designed Lid locking system to make sure lid is locked properly Single channel data logger system (Only with Automatic Model) Printing System with Thermal Printer 21 CFR Software Automatic System (Only for Normal Autoclave Vertical Model) OR Microprocessor Based Automatic Touch Screen Display System with Data Logging

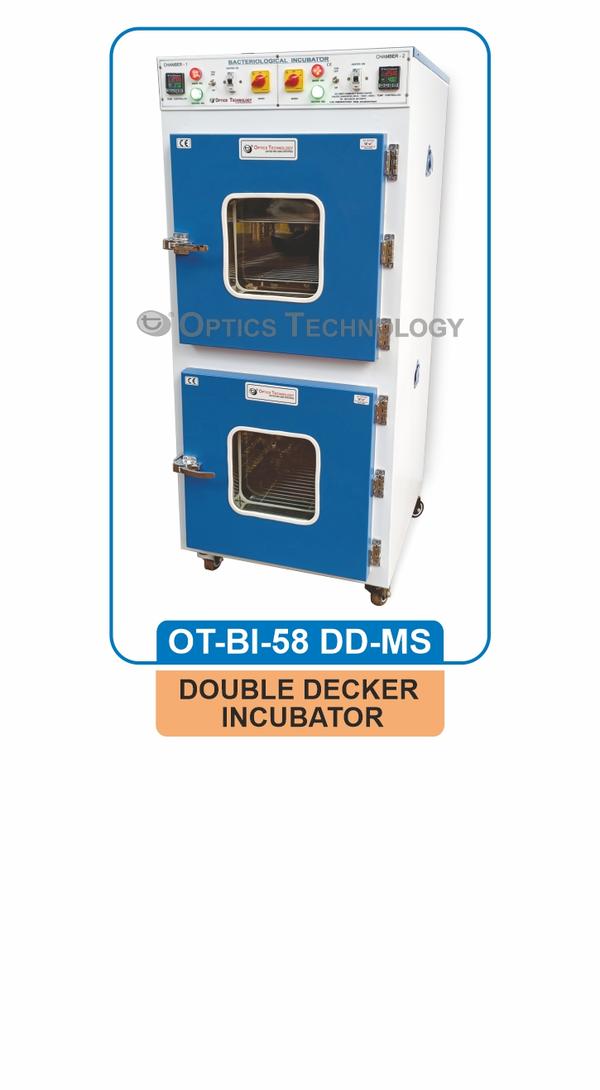

(One above the other with individual temperature controlling temp. range + 5°C to 50°C) Inner chamber made of S.S. 304 and outer body made of M.S. Duly powder coated body or stainless steel (S.S. 304) with independent controlling of temperature having independent control boxes and independent doors. Working size as below in each chamber both 2 Nos. compressors are fitted at the bottom of whole unit castor wheel mounted cabinet for easy mobility with 2 nos. microprocessor based PID controller. OR ANY SPECIAL SIZE Optional : 2 Nos. Microprocessor based Touch Screen Display System Online transfer of data without any Cable/Wire interference 21 CFR Software (For Non Editable Data)

Double wall construction with inner Chamber Stainless Steel (S.S. 304) & Outer Body M.S. duly powder coated / Stainless Steel 304 Mounting One above the other with individual control box in the sides. Independent Doors. Independent controlling of temperature by 2 nos. microprocessor based PID controller. Removable SS wire mesh trays. The inner chamber is properly insulated with Glass Wool to prevent thermal losses. With Air Circulating Fan. OR ANY NON STANDARD SIZE Optional : 2 Nos. special Heavy-Duty Air Circulating fan system for continous Non-stop working 2 Nos. Microprocessor based Touch Screen with Pen Drive for data logging, Printing through PC communication & saving of data in PC Online transfer of data without any Cable/Wire interference 21 CFR Software (For Non Editable Data)

To maintain Temp. below 35°C Inner body is made of S.S. 304. Outer Body made of M.S. Duly Powder Coated / S.S. 304 Temp. Controlled by Microprocessor Based PID Controller With an Accuracy of ± 0.5°C Temp. Range +5°C to 50°C “Hermetically sealed” CFC Free Compressor of “Kirloskar” / Tecumseh with kit (Condensor, Fan, Motor, Compressor in 1 set) The inner chamber is properly insulated with special PUF to prevent thermal losses. Heating by Stainless Steel heaters with fins. Full length inner view flexi glass door. Lock & Key arrangement Caster wheel mounted cabinet for easy movability With 2 No. Air Circulating Fan for uniform temperature. Eco friendly CFC free compressor Special Features: Door operated Light illumination system inside the chamber. Specially designed adjustable S.S. wire mesh Shelves for uniform Temp. Specially designed voltage protection device to protect the instrument from voltage fluctuation. Digital Graphical Display of Voltage. With Automatic On/Off Function system for Fan Calibration Certificate with NABL Traceability will be provided free of cost.
