With Visual Display Screen Designed for accurate measurement of melting point and for checking melting range in solid samples. Technical Details: Temperature range : Ambient temp. to 300°C Display : LCD Power : 220/230V Features: • Graphical LCD display • Colour TFT Screen with high resolution camera • Highly accurate and easy to operate • Silicon oil bath and inbuilt magnetic stirrer for uniform heating • User selectable Ramp and Plateau rate

Air Flow: Vertical With Working table of S. S. 304 Body is made of Wooden/ M.S. Duly Powder Coated/ S.S. 304 Imported Mini Pleat HEPA Filter of 0.3µ of an efficiency of 99.97% down to 0.3µ media is of glass fiber & made of pleats back & frown in a anodized Aluminum frame. Prefilter of dry fiber washable type with the frame of on all the sides Confirm the international standards 209 E. Class 100 (As per USFED-STD. 209E) ISO Class 5 (As per ISO-14644.1), IEC 61010-1:2010, ISO 29463-5:2022 Statically Balanced motor blower Assembly (Heavy Duty) Velocity at the output of HEPA is 90 ± 20 FPM Noise level is very low Vibration is also very low Normal working fluorescent Light Static pressure Manometer U. V. Light 1 x 30/15 watts Front Door of Acrylic Sheet (Transparent) Gas cock Or any non standard size Optional: Magnahelic Gauge in place of Static Pressure Manometer. Digital Manometer U.V. Resistant Poly Carbonate sheet in place of Acrylic Sheet. Automatic Safety system for U.V. light. Automatic start system filtered Air & Normal light in Laminar Air Flow LCD display with soft touch switches for Motor, U.V. Light, F.V. Light & U.V. Timer Automatic motorised front door lifting arrangement Online transfer of data without any cable/wire Interference MICROPROCESSOR BASED TOUCH SCREEN DISPLAY SYSTEM Display of velocity with lower and upper safe limits. Display of total run time of instrument & timer for U.V. lamp Control of U.V. light to prevent the operator from U.V. rays as and when required. Automatic Door sensors to switch off the U.V. light when door is opened. Display of message for life of HEPA filter, U.V. light etc.

“OPTICS TECHNOLOGY” Class III Bio safety cabinet offers the highest level of operator, product and environmental protection from infectious/biohazardous aerosols and is suitable for microbiological work. Designed for an absolute level of containment, it is frequently used for work involving the deadliest bio-hazards. A Class III cabinet is defined as a totally enclosed, ventilated cabinet with leak-tight construction it is also called glove boxes. The cabinet is maintained under negative pressure and supply air is drawn in through HEPA filters. A supply of HEPA filtered air provides product protection and prevents cross contamination of samples while exhaust air is HEPA-filtered and incinerated. Key Benefits: Safer dual main with 100% exhaust filters Exclusive dual main exhaust filters provide > 100.000 times better protection than single-stage designs. An integrated pass-through with interlocking doors permits materials transfer without risk of environmental contamination. An angled cabinet front ensures a comfortable working posture. Energy Efficient Blowers Optional: 1. Magnahelic Gauge in place of Static Pressure Manometer. 2. Digital Manometer 3. U.V. Resistant Poly Carbonate sheet in place of Acrylic Sheet. 4. LCD display with soft touch switches for Motor, U.V. Light, F.V. Light & U.V. Timer 5. Imported Gloves 6. Automatic motorised front door lifting arrangement 7. Online transfer of data without any cable/wire Interference MICROPROCESSOR BASED TOUCH SCREEN DISPLAY SYSTEM Display of velocity with lower and upper safe limits. Display of total run time of instrument & timer for U.V. lamp Control of U.V. light to prevent the operator from U.V. rays as and when required. Automatic Door sensors to switch off the U.V. light when door is opened. Display of message for life of HEPA filter, U.V. light etc. With Glove Port (Without Gloves) Outer Body: Wooden / Mild Steel Duly Powder Coated / Stainless Steel (S.S. 304)

Applications include isolation and indentification of plant/human pathogens, work in virology, tissue culture, sterility testing and recombinant DNA research. This Biohazard Cabinet offers operator protection from low to moderate risk biological agents (or chemical carcinogens), while providing a sterile work environment for the procedure. The cabinet is kept under negative pressure with partial quantity of recirculated air exhausted through a HEPA filter. External exhaust from the laboratory is optional. The Biological Safety Cabinet is similar in performance and specification to the Vertical Series, described on reserse. The additional main features are as under:- Specially suited for Pathogenic work, chemical work, critical biological work involging virus and pathogens & for microbiology, biochemistry etc. Standard S.S. Perforated table. Imported Mini Pleat HEPA of 0.3 µ of an efficiency of 99.97% down to 0.3 micron Media is of glass fiber & made of pleats back & fro in an anodized aluminum frame (With Test Report). Integral powerful exhaust system. Built-in-positive Air Curtain effect to prevent inside air from going out and room air from entering in, providing total process and operator safety. Exhaust ducting to carry the air outside. Front sliding door, U.V. light, Manometer, Gas cock etc. Mini Pleat HEPA Filter in Exhaust. Virus Burn out Unit in Exhaust. FACE VELOCITY: A face velocity of 90±20 FPM is maintained. Optional: Magnahelic Gauge in place of Static Pressure Manometer. Digital Manometer U.V. Resistant Poly Carbonate sheet in place of Acrylic Sheet. LCD display with soft touch switches for Motor, U.V. Light, F.V. Light & U.V. Timer Gloves Port (Without Gloves) Automatic motorised front door lifting arrangement Online transfer of data without any cable/wire Interference MICROPROCESSOR BASED TOUCH SCREEN DISPLAY SYSTEM Display of velocity with lower and upper safe limits. Display of total run time of instrument & timer for U.V. lamp. Control of U.V. light to prevent the operator from U.V. rays as and when required. Automatic Door sensors to switch off the U.V. light when door is opened. Display of message for life of HEPA filter, U.V. light etc.

MICROPROCESSOR BASED TOUCH SCREEN DISPLAY SYSTEM

To maintain Temp. below 35°C Inner body is made of S.S. 304. Outer Body made of M.S. Duly Powder Coated / S.S. 304 Temp. Controlled by Microprocessor Based PID Controller With an Accuracy of ± 0.5°C Temp. Range +5°C to 50°C “Hermetically sealed” CFC Free Compressor of “Kirloskar” / Tecumseh with kit (Condensor, Fan, Motor, Compressor in 1 set) The inner chamber is properly insulated with special PUF to prevent thermal losses. Heating by Stainless Steel heaters with fins. Full length inner view flexi glass door. Lock & Key arrangement Caster wheel mounted cabinet for easy movability With 2 No. Air Circulating Fan for uniform temperature. Eco friendly CFC free compressor Special Features: Door operated Light illumination system inside the chamber. Specially designed adjustable S.S. wire mesh Shelves for uniform Temp. Specially designed voltage protection device to protect the instrument from voltage fluctuation. Digital Graphical Display of Voltage. With Automatic On/Off Function system for Fan Calibration Certificate with NABL Traceability will be provided free of cost.

Double walled, Inner chamber made of Stainless Steel 304. Outside Mild Steel painted in epoxy powder coating / stainless steel 304 with wire mesh adjustable shelves, two indicators and on /off switch to work on 220/230 volts A.C. Heating elements are placed in ribs at the bottom and sides. Temperature range Ambient Temp. +5°C to 70°C. The door has synthetic rubber gasket. With one number Air circulating Fan. Specially Designed to maintain 37°C temp. Touch Screen Display Menu driven settings for Controlling parameters Setting / RTC accurate Date Time Clock. Pen Drive for saving of data for printing through PC communication. OR ANY NON STANDARD SIZE Optional : Special heavy duty air circulating fan system. Online transfer of data without any cable/wire Interference 21 CFR software (for non-editable data)

Double walled, Inner chamber made of Stainless Steel 304. Outside Mild Steel painted in epoxy powder coating / stainless steel 304 with wiremesh adjustable shelves, two indicators and on / off Switch. Heating elements are placed in ribs at the bottom and sides. Temperature range Ambient +5°C to 250°C. To work on 220/230 volts A.C. With one number Air circulating Fan. Touch Screen Display Menu driven settings for Controlling parameters Setting / RTC accurate Date Time Clock. Pen Drive for saving of data for printing through PC communication. Optional: Special heavy duty air circulating fan system. Online transfer of data without any cable/wire Interference 21 CFR software (for non-editable data) Note : Hot Air Oven is also available in high temperature (300°C) (Model No. OT-HTO-55)

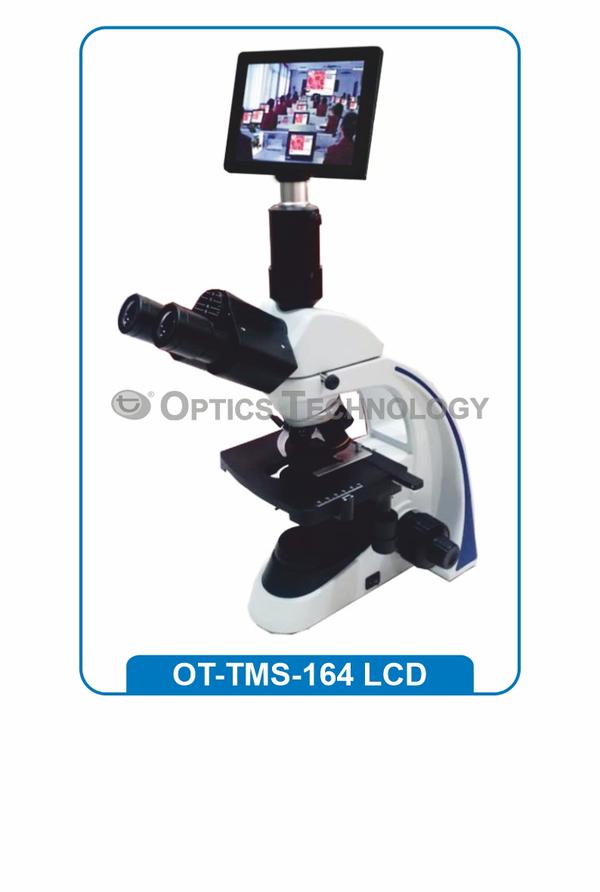

HDMI camera and can be used for high definition display. It adopts Panasonic IPS LCD panel (Super TFT) to guarantee the wide view angle and high contrast and the imaging & display solution simple, flexible and intuitive.
