It consist of an inbuilt prefilter & very high exchanging capacity non-corrosive CATION & ANION Resin, columns prefilled with imported Resins for efficient results having treated water parameters. Fitted with a sturdy PVC multi control valve & can be connected direct to water taps. Fitted with analog / digital conductivity meter. Supplied with one plastic chemical proof regeneration tank & the complete unit is housed in a painted M.S. trolly for easy mobility. Features: • Digital Display • Non corrosive Regeneration Tank •In Built Pre filter High capacity Cation and Anion exchange resins. Upflow treatment. Easily portable - metal stand and trolley Can be connected direct to Water Tap. Simple Periodic regeneration - negligible operating costs. Digital model is fitted with digital conductivity meter. Treated water will have the conductivity less than 10 ms/cm and pH of 7.5-9 • Available in Double Bed, Four bed and Mixed bed models Capacity: 50 Ltrs / Hr. 70 Ltrs / Hr. 100 Ltrs / Hr. 200 Ltrs / Hr. 500 Ltrs / Hr.

Air Flow: Vertical With Working table of S. S. 304 Body is made of Wooden/ M.S. Duly Powder Coated/ S.S. 304 Imported Mini Pleat HEPA Filter of 0.3µ of an efficiency of 99.97% down to 0.3µ media is of glass fiber & made of pleats back & frown in a anodized Aluminum frame. Prefilter of dry fiber washable type with the frame of on all the sides Confirm the international standards 209 E. Class 100 (As per USFED-STD. 209E) ISO Class 5 (As per ISO-14644.1), IEC 61010-1:2010, ISO 29463-5:2022 Statically Balanced motor blower Assembly (Heavy Duty) Velocity at the output of HEPA is 90 ± 20 FPM Noise level is very low Vibration is also very low Normal working fluorescent Light Static pressure Manometer U. V. Light 1 x 30/15 watts Front Door of Acrylic Sheet (Transparent) Gas cock Or any non standard size Optional: Magnahelic Gauge in place of Static Pressure Manometer. Digital Manometer U.V. Resistant Poly Carbonate sheet in place of Acrylic Sheet. Automatic Safety system for U.V. light. Automatic start system filtered Air & Normal light in Laminar Air Flow LCD display with soft touch switches for Motor, U.V. Light, F.V. Light & U.V. Timer Automatic motorised front door lifting arrangement Online transfer of data without any cable/wire Interference MICROPROCESSOR BASED TOUCH SCREEN DISPLAY SYSTEM Display of velocity with lower and upper safe limits. Display of total run time of instrument & timer for U.V. lamp Control of U.V. light to prevent the operator from U.V. rays as and when required. Automatic Door sensors to switch off the U.V. light when door is opened. Display of message for life of HEPA filter, U.V. light etc.

Working table of S.S. 304 Body is made of Wooden/ M.S. Duly Powder Coated/ S.S. 304 Imported Mini Pleat HEPA Filter of 0.3μ of an efficiency of 99.97% down to 0.3μ media is of glass fiber & made of pleats back & frown in a anodized Aluminum frame. Pre filter of dry fiber washable type with the frame of on all the sides. Confirm the international standards 209 E. Class 100 (As per USFED-STD. 209E) ISO Class 5 (As per ISO-14644.1), IEC 61010-1:2010, ISO 29463-5:2022 Statically Balanced motor blower Assembly (Heavy Duty) Velocity at the output of HEPA is 90 ± 20 FPM Noise level is very low Vibration is also very low. Normal working fluorescent Light. Static pressure Manometer U. V. Light 1 x 30/15 watts. Front Door of Acrylic Sheet (Transparent) Or any non standard size Optional: Magnahelic Gauge in place of Static Pressure Manometer. Digital Manometer U.V. Resistant Poly Carbonate sheet in place of Acrylic Sheet. Automatic Safety system for U.V. light. Automatic start system filtered Air & Normal light in Laminar Air Flow LCD display with soft touch switches for Motor, U.V. Light, F.V. Light & U.V. Timer Automatic motorised front door lifting arrangement Online transfer of data without any cable/wire Interference

“OPTICS TECHNOLOGY” Class III Bio safety cabinet offers the highest level of operator, product and environmental protection from infectious/biohazardous aerosols and is suitable for microbiological work. Designed for an absolute level of containment, it is frequently used for work involving the deadliest bio-hazards. A Class III cabinet is defined as a totally enclosed, ventilated cabinet with leak-tight construction it is also called glove boxes. The cabinet is maintained under negative pressure and supply air is drawn in through HEPA filters. A supply of HEPA filtered air provides product protection and prevents cross contamination of samples while exhaust air is HEPA-filtered and incinerated. Key Benefits: Safer dual main with 100% exhaust filters Exclusive dual main exhaust filters provide > 100.000 times better protection than single-stage designs. An integrated pass-through with interlocking doors permits materials transfer without risk of environmental contamination. An angled cabinet front ensures a comfortable working posture. Energy Efficient Blowers Optional: 1. Magnahelic Gauge in place of Static Pressure Manometer. 2. Digital Manometer 3. U.V. Resistant Poly Carbonate sheet in place of Acrylic Sheet. 4. LCD display with soft touch switches for Motor, U.V. Light, F.V. Light & U.V. Timer 5. Imported Gloves 6. Automatic motorised front door lifting arrangement 7. Online transfer of data without any cable/wire Interference MICROPROCESSOR BASED TOUCH SCREEN DISPLAY SYSTEM Display of velocity with lower and upper safe limits. Display of total run time of instrument & timer for U.V. lamp Control of U.V. light to prevent the operator from U.V. rays as and when required. Automatic Door sensors to switch off the U.V. light when door is opened. Display of message for life of HEPA filter, U.V. light etc. With Glove Port (Without Gloves) Outer Body: Wooden / Mild Steel Duly Powder Coated / Stainless Steel (S.S. 304)

Applications include isolation and indentification of plant/human pathogens, work in virology, tissue culture, sterility testing and recombinant DNA research. This Biohazard Cabinet offers operator protection from low to moderate risk biological agents (or chemical carcinogens), while providing a sterile work environment for the procedure. The cabinet is kept under negative pressure with partial quantity of recirculated air exhausted through a HEPA filter. External exhaust from the laboratory is optional. The Biological Safety Cabinet is similar in performance and specification to the Vertical Series, described on reserse. The additional main features are as under:- Specially suited for Pathogenic work, chemical work, critical biological work involging virus and pathogens & for microbiology, biochemistry etc. Standard S.S. Perforated table. Imported Mini Pleat HEPA of 0.3 µ of an efficiency of 99.97% down to 0.3 micron Media is of glass fiber & made of pleats back & fro in an anodized aluminum frame (With Test Report). Integral powerful exhaust system. Built-in-positive Air Curtain effect to prevent inside air from going out and room air from entering in, providing total process and operator safety. Exhaust ducting to carry the air outside. Front sliding door, U.V. light, Manometer, Gas cock etc. Mini Pleat HEPA Filter in Exhaust. Virus Burn out Unit in Exhaust. FACE VELOCITY: A face velocity of 90±20 FPM is maintained. Optional: Magnahelic Gauge in place of Static Pressure Manometer. Digital Manometer U.V. Resistant Poly Carbonate sheet in place of Acrylic Sheet. LCD display with soft touch switches for Motor, U.V. Light, F.V. Light & U.V. Timer Gloves Port (Without Gloves) Automatic motorised front door lifting arrangement Online transfer of data without any cable/wire Interference MICROPROCESSOR BASED TOUCH SCREEN DISPLAY SYSTEM Display of velocity with lower and upper safe limits. Display of total run time of instrument & timer for U.V. lamp. Control of U.V. light to prevent the operator from U.V. rays as and when required. Automatic Door sensors to switch off the U.V. light when door is opened. Display of message for life of HEPA filter, U.V. light etc.

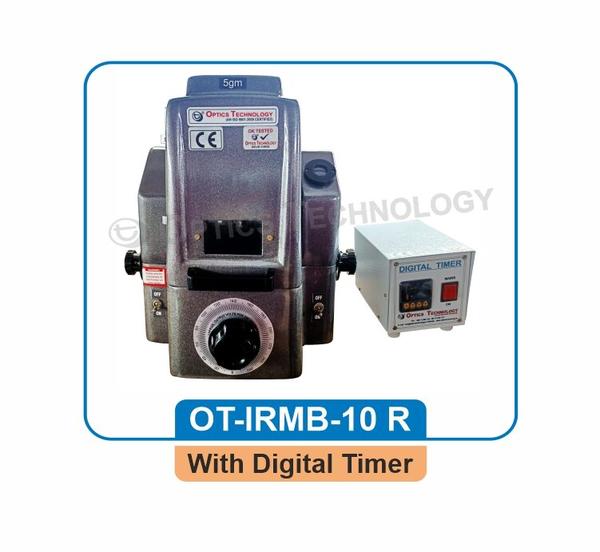

The instrument consists of an infrared lamp, a sensitive torsion balance and a temperature Controller (REGAVOLT), all housed in a compact cabinet made of Aluminum, having robust design. The Infrared radiation from the lamp is used for heating the sample. The temperature is controlled by the solid state control. The sensitive torsion balance used magnetic damping to damp the vibrations of the pan.

Clarity is more compared to a normal ABBE refractometer. Background of Scale is green with clean scale and divisions in black. Both x scale & measuring scale are in a single eyepiece. Abbe refractometer is measure the refractive index with high accuracy. Abbe refractometer is more accurate than normal Abbe Refractometer Capable of measuring all kinds of concentrations and identify several types of substances The device is equipped with an integrated thermometer and a water connection to control the temperatures of the fluid Equipped with a Brix and a refractive index scale and supplied with a test plate Supplied with carrying case, 0-50°C digital thermometer, calibration plate and adjustment tool

( Stainless Steel SS 304 with HEPA Filter ) These specially designed cabinets provide a wash of sterile filtered, clean air through Imported Mini Pleat HEPA Filters having an efficiency of 99.97% down to 0.3 micron particle size. This cabinet protects dust and other particulates on clean room garments or other materials. For use in the change Room for garment storage & inside the clean room for storage of materials. Self standing cabinet provides down flow clean air to clean room garments. Features: Wooden / M.S. Duly Powder Coated / Stainless Steel 304 Body. Can be designed in Horizontal air flow system also. “All visible exposed surfaces white laminated, giving high impact resistance with smart clean appearance.” Large interior capacity for handling upto 20 garments at a time. Special provision for wire mesh shelves (optional) for component storage. Low power consumption suitable for operation on single phase supply. Any non standard size can be made on order. Applications: Pharmaceuticals Industries, R & D Laboratories, Hospitals Electronic Components and Semiconductor Industries, Photographic Laboratories, Optical Instruments Industries. Model No. Working Size L x B x H OT-SGS-216-W/MS/SS-A 2' x 1.5' x 3.0' OT-SGS-216-W/MS/SS-B 2' x 2.0' x 3.0' OT-SGS-216-W/MS/SS-C 3' x 1.5' x 4.5' OT-SGS-216-W/MS/SS-D 3' x 2.0' x 4.5' ' OT-SGS-216-W/MS/SS-E 4' x 1.5' x 4.5 OT-SGS-216-W/MS/SS-F 4' x 2.0' x 4.5' Optional: Magnehelic Gauge

Laminar Air flow with hanging construction can be used everywhere, where is necessary not only to do the working process in dust-free spaces but also fully to eliminate vibration caused by laminar flow cabinets. The body is made of wooden / M.S. Duly Powder Coated / S.S. Body. Imported Mini Pleat HEPA of 0.3µ of efficiency of 99.97% down to 0.3µ media is of glass fiber & made of Pleats. Pre-filter of dry fiber washable type with the frame on all sides. Confirm the international standard 209 E. Class 100 (As per USFED-STD. 209E) ISO Class 5 (As per ISO-14644.1), IEC 61010-1:2010, ISO 29463-5:2022 Statically Balanced motor blower Assembly (Heavy Duty) Velocity at the output of HEPA is 90 ± 20 FPM Noise level & Vibration is very low. Normal working fluorescent Light. Static pressure Manometer. U. V. Light 1 x 30/15 watts.
