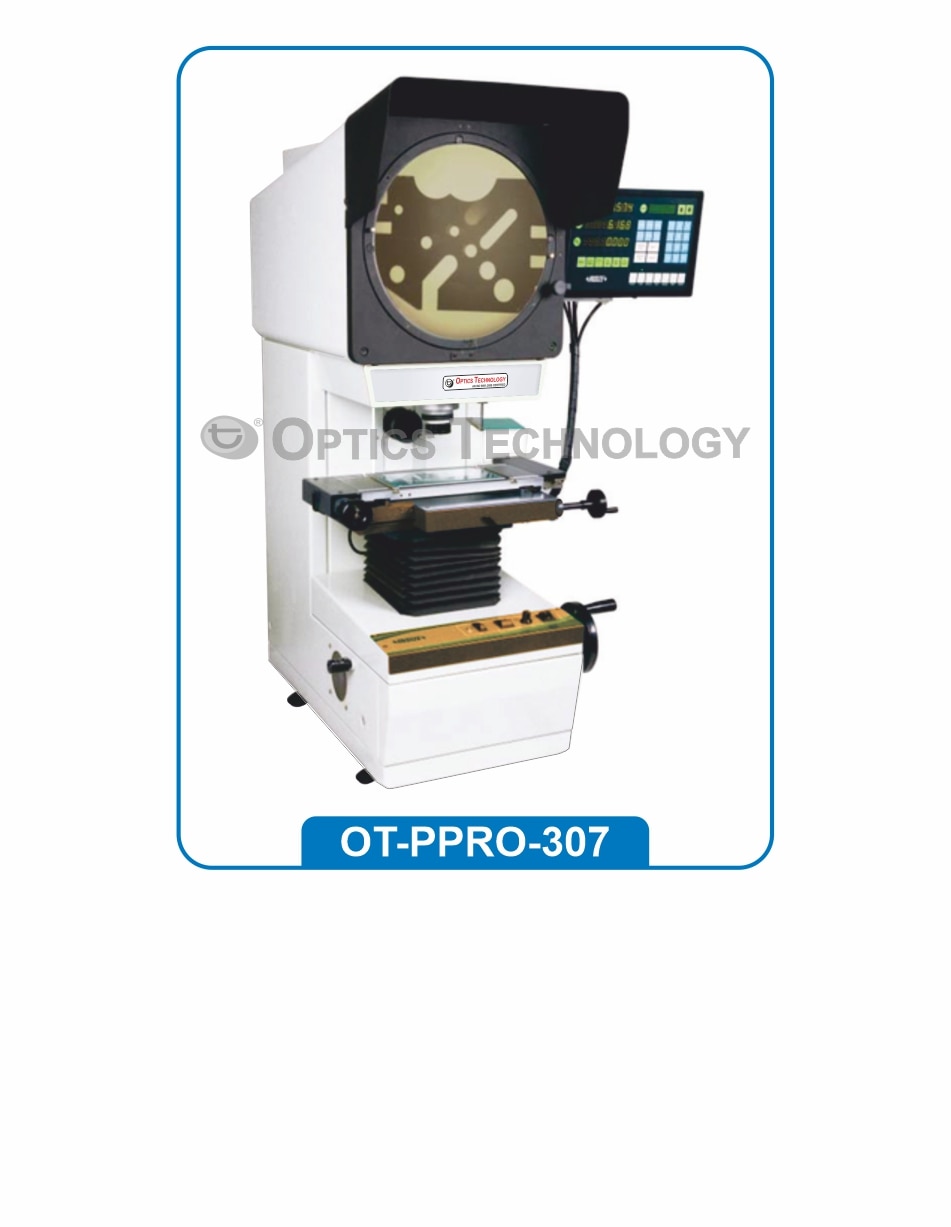

Is a device that applies the principles of optics to the inspection of manufactured parts. “Optics Technology” profile projector is manufactured using best material & leading techniques in compliance with the set norms of industry. Technical Details: Working table size : Al. 125 x 125mm Effective table area : 110 x 110mm X-Y Range : 25 x 25mm Measuring unit : Standard Micrometer Heads 0-25mm Resolution : 0.01mm Rotary Measuring Stage : 360° graduated with vernier 6 minutes. Stage Glass : Diameter 62mm Maximum Workpiece Height : 100mm Dimensions : 55 x 35 x 86 cms. Halogen Projection Bulb : 12Volts / 100Watt or 10watt Features: 1. High Accuracy 2. Reliability 3. Unmatched Quality
