Used in pharmaceuticals, chemicals, dyes and food industries for various heating and drying applications. Sizes ranges from 6 to 96 trays with heating upto 200°C. Electrically operated tray dryer is with double walled construction inner S.S. & outer made of M.S. body duly powder coated / S.S. 304. All the trays are made of S.S. 304. It is provided with glass wool insulation through out the chamber fitted with electrical motor with fan with pillow block bearings. Temp. Controlled By Microprocessor Based PID Controller & AIR Circulating Fan For Uniform Temperature.

Are designed and built for the safe storage of acids & corrosive chemicals. Chemical storage cabinets adhere to quality construction standards.

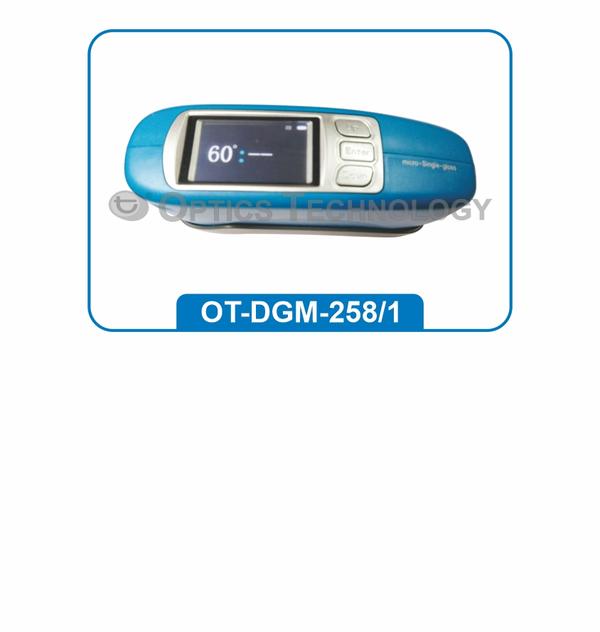

The surface luster meter for printing ink, bake lacquer, coat, woodwork, construction decoration materials like marble, granite etc, plastic, sheet and other non metal materials. Specification Projecting angle : 60° Measurement range : 0-200 GU Value error : 1.2 GU Power : DC 9V

DIGITAL GLOSS METER (3 ANGLE)

Technical Details: Main Supply Cool White Fluorescent Lamp Triphosphor Fluorescent Lamp Articial Daylight Fluorescent Lamps Tungsten Filament Lamps Hour Totalizer 10,000 Hours, L/C U.V. Light : 230V, 50 Hz, AC Single Phase : (18 W) : (18 W) (18 W) : (40 W) : 1min

➤ Visual measurement of color matching to determine material color. ➤ Design in conformity with internationally accepted color scale of Lovibond. ➤ Simple structure and easy to operate. ➤ With different size cuvettes and better observe the visual color effect of various materials.

Spectral colorimeter are economical models to measure the color difference. Instrument is with auto calibration to make it simple in operation. It contains 30 kinds of parameters and 26 kinds of Illuminantes.

Colour Measuring Device comes with Camera to view the measurement area the user can clearly see the measurement area to avoid measurement errors, optical engine which creates the best measurement repeatability. LED light source is provided. Instrument adopts automatic gloss compensation technology which guarantees the accuracy of color measurement value for surfaces of different gloss. It could be used for color matching for many industries and widely used in textile industry, painting industry, plastic industry, food industry, building material industry and other industries for color quality control.

Features & Benefits • Low cost and easy to use • Direct display in cP or maps, % Torque, Spindle and Speed • Torque measurement accuracy: 1% of full scale range • Repeatability: 0.2% of full scale range • Compatible with all Brookfield accessories • NIST traceable viscosity standards available • 18 speeds for greater range capability (0.3 to 100 rpm)

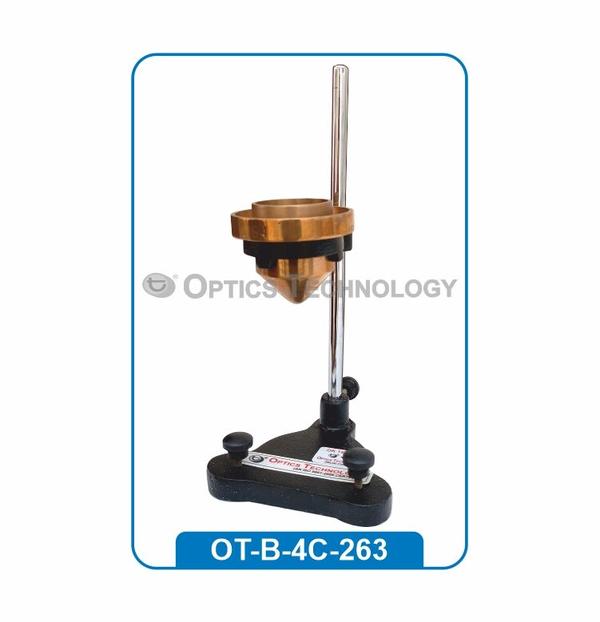

A simple significance device that permits the timed flow of a known level of liquid passing through an orifice located at the bottom. The conditions in a simple flow cup are rarely ideal for making true measurements of viscosity. It is important when using a Ford Cup and when retesting liquids that the temperature of the cup and the liquid is maintained, as ambient temperature makes a significant difference to viscosity and thus flow rate. Optional: Digital Stop Watch

The Bostwick Consistometer is the preferred choice for measuring consistency and flow rate in a variety of products. The unit is made from stainless steel which resists corrosion. You can use “Bostwick” on any viscous material such as sauces, salad dressings, paints, chemicals or cosmetics. The normal way to use the Consistometer is to measure the distance a sample flows in a given time interval. The Bostwick is a long trough with 0.5 cm graduations along the bottom. The trough is separated near one end by a spring loaded gate. This forms a chamber where the sample is loaded. The Bostwick also complies with the procedures established in Mill Spec R-81294D and ASTM F1080-93. The Bostwick Consistometer is built for ease of operation and heavy duty use. To clean it after a test, simply wash it out with water.

This instrument is fit to detect proper picking maturity and controls fruit softening during cold storage it measures fruit firmness and provides a quick, easy and accurate method to determine fruit maturity. Process: Cut a part of fruit turn the dial to align the drive pointer with the first calibration of the dial hold the hardness tester in hand make the tester perpendicular to the surface of the fruit under tester press, the test heads into the fruit evenly and then drive the pointer to start driving of indicator on the dial.
