Applications include isolation and indentification of plant/human pathogens, work in virology, tissue culture, sterility testing and recombinant DNA research. This Biohazard Cabinet offers operator protection from low to moderate risk biological agents (or chemical carcinogens), while providing a sterile work environment for the procedure. The cabinet is kept under negative pressure with partial quantity of recirculated air exhausted through a HEPA filter. External exhaust from the laboratory is optional. The Biological Safety Cabinet is similar in performance and specification to the Vertical Series, described on reserse. The additional main features are as under:- Specially suited for Pathogenic work, chemical work, critical biological work involging virus and pathogens & for microbiology, biochemistry etc. Standard S.S. Perforated table. Imported Mini Pleat HEPA of 0.3 µ of an efficiency of 99.97% down to 0.3 micron Media is of glass fiber & made of pleats back & fro in an anodized aluminum frame (With Test Report). Integral powerful exhaust system. Built-in-positive Air Curtain effect to prevent inside air from going out and room air from entering in, providing total process and operator safety. Exhaust ducting to carry the air outside. Front sliding door, U.V. light, Manometer, Gas cock etc. Mini Pleat HEPA Filter in Exhaust. Virus Burn out Unit in Exhaust. FACE VELOCITY: A face velocity of 90±20 FPM is maintained. Optional: Magnahelic Gauge in place of Static Pressure Manometer. Digital Manometer U.V. Resistant Poly Carbonate sheet in place of Acrylic Sheet. LCD display with soft touch switches for Motor, U.V. Light, F.V. Light & U.V. Timer Gloves Port (Without Gloves) Automatic motorised front door lifting arrangement Online transfer of data without any cable/wire Interference MICROPROCESSOR BASED TOUCH SCREEN DISPLAY SYSTEM Display of velocity with lower and upper safe limits. Display of total run time of instrument & timer for U.V. lamp. Control of U.V. light to prevent the operator from U.V. rays as and when required. Automatic Door sensors to switch off the U.V. light when door is opened. Display of message for life of HEPA filter, U.V. light etc.

Provided with microprocessor based LCD Display with Digital Temp. Controller Cum Timer system for setting temperature, purge time, exhaust time etc. Autoclave is controlled with the settings on this controller. The chamber is absolutely leak proof and can be operated at any Selected point in between 5 to 20 pounds per sq. Inch. It is provided with pressure gauge, pressure release valve, S.S. Basket, safety valve, water level indicator with cord, Plug & Pressure Control Switch. It is provided with Radial Locking System with Automatic Water Level cut off device for element. Optional : Vacuum Breaker Valve Calibration Port Safety Alarm Specially designed Lid locking system to make sure lid is locked properly Single channel data logger system (Only with Automatic Model) Printing System with Thermal Printer 21 CFR Software Automatic System (Only for Normal Autoclave Vertical Model) OR Microprocessor Based Automatic Touch Screen Display System with Data Logging

nner chamber is made of thick Stainless Steel (304). Outer body is made of thick Mild Steel / Stainless Steel 304. The chamber is absolutely leak proof and can be operated at any Selected point in between 5 to 20 pounds per sq. Inch. It is provided with pressure gauge, pressure release valve, S.S. Basket, safety valve, water level indicator with cord, Plug & Pressure Control Switch. It is provided with Radial Locking System with Automatic Water Level cut off device for element as a safety feature and Digital Temp. Controller Cum Timer. Temperature Range 121ºC ptional: Vacuum Breaker Valve Calibration Port Safety Alarm Specially designed Lid locking system to make sure lid is locked properly Single channel data logger system (Only with Automatic Model) Printing System with Thermal Printer 21 CFR Software Automatic System (Only for Normal Autoclave Vertical Model) OR Microprocessor Based Automatic Touch Screen Display System with Data Logging

TWO-STAGE VANE PUMP To improve the backing pressure and displacement at low pressure two stages are connected in series. ANTI-SUCKBACK SYSTEM If the Power Supply fails on stops, an anti-suck back device. Prevents air or oil the pump to be drawn back into the chamber being evacuated and operated by Solenoid coil. GAS BALLAST The gas ballast allows a quantity of air to be injected into the second stage of the pump during compression to reduce the partial pressure to the pumped gas below its saturated Vapour pressure and thus prevent condensation. The saturated vapour pressure of a gas is higher when it is hot and lower when it is cold. When gas ballasting is in use, there will be increase in ultimate pressure of the pump as well as the temperature. Power : 230V AC supply Optional: Moisture Trap Non Return Valve Vacuum Gauge Air Oil Mist Exhaust Filter

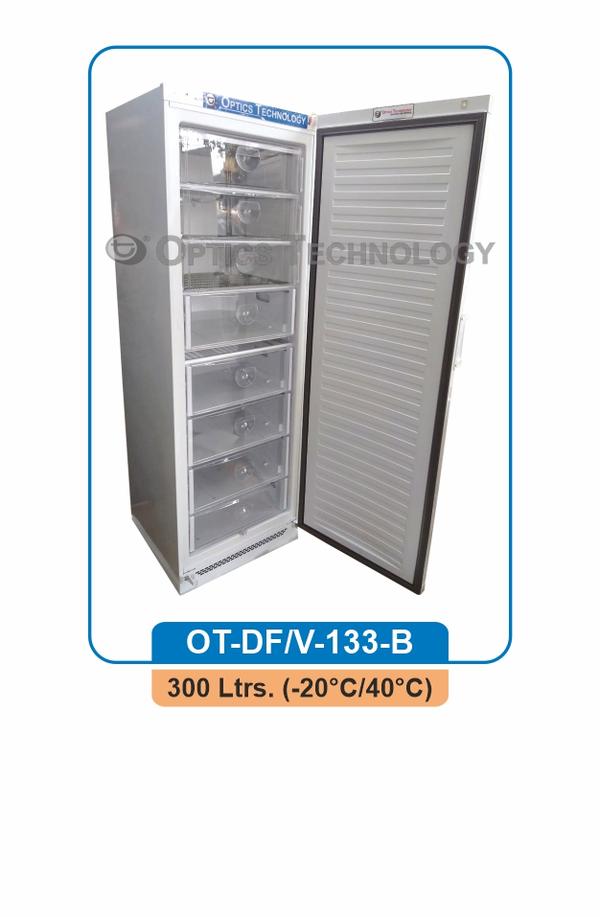

Temp. Range: ( -20°C / -40°C) “State of Art Technology” Puff Insulated to Prevent Thermal Losses. Specially Designed Combination of Fixed & Pull Out Drawer System for Storage, Temp. Controller, Fast Freeze Button & Lamp, Very Low Noise, Plastic Body, Solid Door & CFC Free Heavy Duty Compressor, Wheels on Rear Side. Works on 220V AC / 50 Hz Mains. Temp. controlled by Microprocessor based Temp. Controller Eco friendly refrigerant CFC free Heavy Duty Compressor

Puf insulated to prevent thermal losses Eco friendly refrigerant CFC free Heavy Duty Compressor Temp. controlled by Microprocessor based Temp. Controller (Digital LED Display) Very low noise Lock & key arrangement Door is sealed with Silicon Gasket Heavy duty Castor Wheels Mounted for easy movability Works on 220 VAC / 50Hz Mains.

We are engaged in offering a very highly premium quality range of Laboratory Pulverizer. It is a self contained grinder, with a rotary disc, having a planetary movement in a vertical plane. Laboratory Pulverizer is a disc type grinder, designed to grind virtually any material to produce a fine mesh sample in one operation. It is a self contained grinder, with a rotary disc, having a planetary movement in a vertical plane.

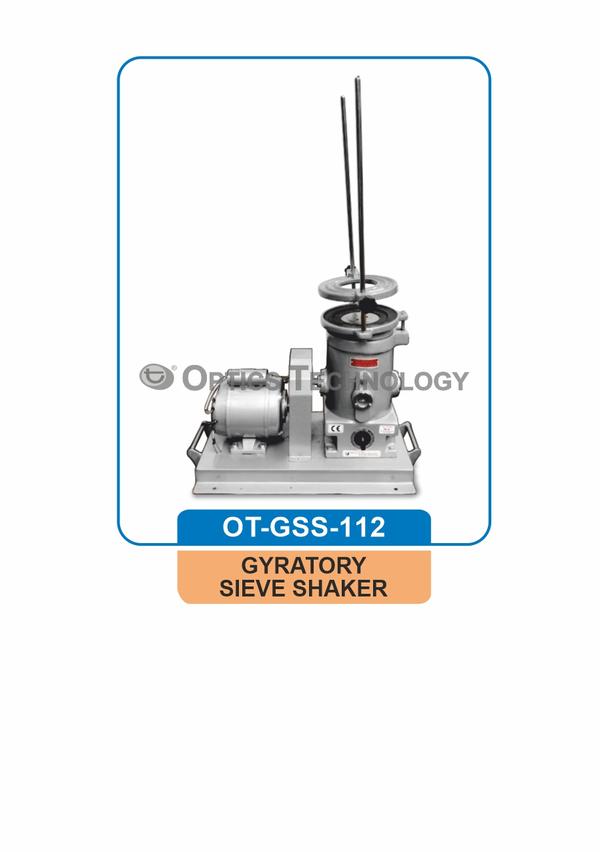

(WITH MOTOR & MECHANICAL TIMER) Produces upward and downward movement but is inclined from the vertical axis and the direction of inclination changes progressively in clockwise direction. Optional: Digital Timer

Air Flow: Vertical With Working table of S. S. 304 Body is made of Wooden/ M.S. Duly Powder Coated/ S.S. 304 Imported Mini Pleat HEPA Filter of 0.3µ of an efficiency of 99.97% down to 0.3µ media is of glass fiber & made of pleats back & frown in a anodized Aluminum frame. Prefilter of dry fiber washable type with the frame of on all the sides Confirm the international standards 209 E. Class 100 (As per USFED-STD. 209E) ISO Class 5 (As per ISO-14644.1), IEC 61010-1:2010, ISO 29463-5:2022 Statically Balanced motor blower Assembly (Heavy Duty) Velocity at the output of HEPA is 90 ± 20 FPM Noise level is very low Vibration is also very low Normal working fluorescent Light Static pressure Manometer U. V. Light 1 x 30/15 watts Front Door of Acrylic Sheet (Transparent) Gas cock Or any non standard size Optional: Magnahelic Gauge in place of Static Pressure Manometer. Digital Manometer U.V. Resistant Poly Carbonate sheet in place of Acrylic Sheet. Automatic Safety system for U.V. light. Automatic start system filtered Air & Normal light in Laminar Air Flow LCD display with soft touch switches for Motor, U.V. Light, F.V. Light & U.V. Timer Automatic motorised front door lifting arrangement Online transfer of data without any cable/wire Interference MICROPROCESSOR BASED TOUCH SCREEN DISPLAY SYSTEM Display of velocity with lower and upper safe limits. Display of total run time of instrument & timer for U.V. lamp Control of U.V. light to prevent the operator from U.V. rays as and when required. Automatic Door sensors to switch off the U.V. light when door is opened. Display of message for life of HEPA filter, U.V. light etc.
