TWO-STAGE VANE PUMP To improve the backing pressure and displacement at low pressure two stages are connected in series. ANTI-SUCKBACK SYSTEM If the Power Supply fails on stops, an anti-suck back device. Prevents air or oil the pump to be drawn back into the chamber being evacuated and operated by Solenoid coil. GAS BALLAST The gas ballast allows a quantity of air to be injected into the second stage of the pump during compression to reduce the partial pressure to the pumped gas below its saturated Vapour pressure and thus prevent condensation. The saturated vapour pressure of a gas is higher when it is hot and lower when it is cold. When gas ballasting is in use, there will be increase in ultimate pressure of the pump as well as the temperature. Power : 230V AC supply Optional: Moisture Trap Non Return Valve Vacuum Gauge Air Oil Mist Exhaust Filter

Triple Walled Working up to 22 PSI to 25 PSI, Working Temp. 121ºC to 134°C. The inner chamber is made of thick Stainless Steel 304, with the steam stock facility. The outer body is made of thick Stainless Steel 304 / M.S. Duly Powder-Coated body, chamber is absolutely Leak Proof Chamber. Fitted with Digital Temp. Controller cum Timer. It is provided with pressure gauge, pressure release valve, Pressure Stat, Safety Valve, With water Level indicator with cord, Plug, Pressure Control Switch, S.S. Lid, Safety Valve for jacket & Dead Weight With wing nut System, With Water Level cut-off device for safety of Heaters. Optional: Vacuum Breaker Valve Calibration Port Safety Alarm 21 CFR Software (Only with touch screen model) Automatic System OR Microprocessor Based Automatic Touch Screen Display system with Data Logging

Electrically heated, complete with stand single walled Aluminum Body/Stainless Steel 304 along with essential parts like pressure gauge, Safety valve etc.

(Direct Reading of CALORIFIC VALVE with Printer) BOMB IS MADE OF SS 316 Temp. Accuracy ± 0.001˚C Display of Direct Reading of CALORIFIC VALVE with thermal printer Menu driven settings for parameters LCD display Buzzer based alarm facility Memory storage for input data in software Erroneous messages displayed in case of Fuse wire open No paper and Printer door open indicator. USB interface with PC through software Along with all essential accessories (As per details above) for operation of bomb calorimeter. Optional: Automatic Gas Filling System Oxygen Cylinder

“Optics Technology” manually operated Hydraulic Pallet Press for fast and easy preparation of both solid and highly permeable pellet. Working: The pressure pallet and die arm are located in inner cylinder sample is placed in between polished pressure plates. A Hydraulic Press is then used to apply necessary pressure to the sample via die. Cylinder Type : Single acting, up stroking Weight : 35 kgs Pump Type : Hand Operated Safety Feature : Pressure relief valve to safeguard against applying over-pressure Model Size OT-MHPP-276/10 10mm KBr Die Set (Stainless Steel) OT-MHPP-276/13 13mm KBr Die Set (Stainless Steel)

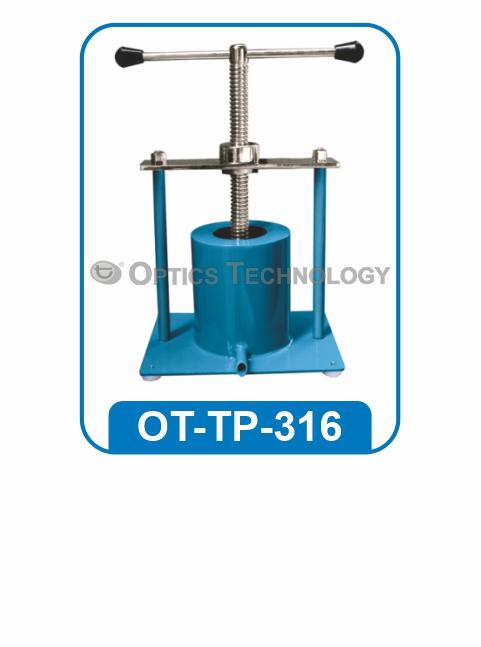

Mainly for separation of marc of herbs and extract solvent by pressing method the unit provide with outlet valve the valve assembly is mounted on heavy M.S. body.

It consist of an inbuilt prefilter & very high exchanging capacity non-corrosive CATION & ANION Resin, columns prefilled with imported Resins for efficient results having treated water parameters. Fitted with a sturdy PVC multi control valve & can be connected direct to water taps. Fitted with analog / digital conductivity meter. Supplied with one plastic chemical proof regeneration tank & the complete unit is housed in a painted M.S. trolly for easy mobility. Features: • Digital Display • Non corrosive Regeneration Tank •In Built Pre filter High capacity Cation and Anion exchange resins. Upflow treatment. Easily portable - metal stand and trolley Can be connected direct to Water Tap. Simple Periodic regeneration - negligible operating costs. Digital model is fitted with digital conductivity meter. Treated water will have the conductivity less than 10 ms/cm and pH of 7.5-9 • Available in Double Bed, Four bed and Mixed bed models Capacity: 50 Ltrs / Hr. 70 Ltrs / Hr. 100 Ltrs / Hr. 200 Ltrs / Hr. 500 Ltrs / Hr.

Specifications: Filtration assembly consisting of S.S. Filter Holder Suitable for filter dia 47 mm. Borosil Glass filtration flask capacity (1Ltr.), Vacuum Pipe & Oil Free Vacuum pump Without filter paper

Sterility testing is required to ensure viable contaminating microorganisms are not evident in a product. Unit is made of S.S. 316 with SS Valve. For excellent chemical resistance and can be fastly sterilized by flame, steam, and oven. We provide a fully leak Proof Platform. Light Weight to handle without Vacuum Pump and without Filter Paper.
