Applications include isolation and indentification of plant/human pathogens, work in virology, tissue culture, sterility testing and recombinant DNA research. This Biohazard Cabinet offers operator protection from low to moderate risk biological agents (or chemical carcinogens), while providing a sterile work environment for the procedure. The cabinet is kept under negative pressure with partial quantity of recirculated air exhausted through a HEPA filter. External exhaust from the laboratory is optional. The Biological Safety Cabinet is similar in performance and specification to the Vertical Series, described on reserse. The additional main features are as under:- Specially suited for Pathogenic work, chemical work, critical biological work involging virus and pathogens & for microbiology, biochemistry etc. Standard S.S. Perforated table. Imported Mini Pleat HEPA of 0.3 µ of an efficiency of 99.97% down to 0.3 micron Media is of glass fiber & made of pleats back & fro in an anodized aluminum frame (With Test Report). Integral powerful exhaust system. Built-in-positive Air Curtain effect to prevent inside air from going out and room air from entering in, providing total process and operator safety. Exhaust ducting to carry the air outside. Front sliding door, U.V. light, Manometer, Gas cock etc. Mini Pleat HEPA Filter in Exhaust. Virus Burn out Unit in Exhaust. FACE VELOCITY: A face velocity of 90±20 FPM is maintained. Optional: Magnahelic Gauge in place of Static Pressure Manometer. Digital Manometer U.V. Resistant Poly Carbonate sheet in place of Acrylic Sheet. LCD display with soft touch switches for Motor, U.V. Light, F.V. Light & U.V. Timer Gloves Port (Without Gloves) Automatic motorised front door lifting arrangement Online transfer of data without any cable/wire Interference MICROPROCESSOR BASED TOUCH SCREEN DISPLAY SYSTEM Display of velocity with lower and upper safe limits. Display of total run time of instrument & timer for U.V. lamp. Control of U.V. light to prevent the operator from U.V. rays as and when required. Automatic Door sensors to switch off the U.V. light when door is opened. Display of message for life of HEPA filter, U.V. light etc.

A medical grade Air Purifier which has HEPA filter, High grade prefilter absorbs odors and toxic gases. HEPA filter removes 99.97% of airborne particles, including mold, spores, and tobacco smoke. UV lamp is effective in eliminating bacteria and viruses smaller then 0.3 microns. Lab tests have shown that 90% of the bacteria and viruses are eliminated in the first pass.

An Air Shower is designed to function as a sort of gateway controller between clean room and the outside. An air shower can cut down on a vast majority of potential contaminates and helps ensure that the product remains safe and uncontaminated. Size : Can be customized as per requirement.

Cuts down the efficiency of Air Conditioning. Shut out insects totally and allows free movement of people and material. Prevents loss of cooling/heating effects of air. For Food, Pharmaceutical or any other Industry. OR any Non Standard Size / Velocity as per Requirement. Optional: Limit Switch (Mechanical Type) OR Limit Switch (Automatic)

Air Flow: Vertical With Working table of S. S. 304 Body is made of Wooden/ M.S. Duly Powder Coated/ S.S. 304 Imported Mini Pleat HEPA Filter of 0.3µ of an efficiency of 99.97% down to 0.3µ media is of glass fiber & made of pleats back & frown in a anodized Aluminum frame. Prefilter of dry fiber washable type with the frame of on all the sides Confirm the international standards 209 E. Class 100 (As per USFED-STD. 209E) ISO Class 5 (As per ISO-14644.1), IEC 61010-1:2010, ISO 29463-5:2022 Statically Balanced motor blower Assembly (Heavy Duty) Velocity at the output of HEPA is 90 ± 20 FPM Noise level is very low Vibration is also very low Normal working fluorescent Light Static pressure Manometer U. V. Light 1 x 30/15 watts Front Door of Acrylic Sheet (Transparent) Gas cock Or any non standard size Optional: Magnahelic Gauge in place of Static Pressure Manometer. Digital Manometer U.V. Resistant Poly Carbonate sheet in place of Acrylic Sheet. Automatic Safety system for U.V. light. Automatic start system filtered Air & Normal light in Laminar Air Flow LCD display with soft touch switches for Motor, U.V. Light, F.V. Light & U.V. Timer Automatic motorised front door lifting arrangement Online transfer of data without any cable/wire Interference MICROPROCESSOR BASED TOUCH SCREEN DISPLAY SYSTEM Display of velocity with lower and upper safe limits. Display of total run time of instrument & timer for U.V. lamp Control of U.V. light to prevent the operator from U.V. rays as and when required. Automatic Door sensors to switch off the U.V. light when door is opened. Display of message for life of HEPA filter, U.V. light etc.

Double walled, Inner chamber made of Stainless Steel 304. Outside Mild Steel painted in epoxy powder coating / stainless steel 304 with wiremesh adjustable shelves, two indicators and on / off Switch. Heating elements are placed in ribs at the bottom and sides. Temperature range Ambient +5°C to 250°C. To work on 220/230 volts A.C. With one number Air circulating Fan. Touch Screen Display Menu driven settings for Controlling parameters Setting / RTC accurate Date Time Clock. Pen Drive for saving of data for printing through PC communication. Optional: Special heavy duty air circulating fan system. Online transfer of data without any cable/wire Interference 21 CFR software (for non-editable data) Note : Hot Air Oven is also available in high temperature (300°C) (Model No. OT-HTO-55)

Double walled, Inner chamber made of Stainless Steel 304. Outside Mild Steel painted in epoxy powder coating / stainless steel 304 with wiremesh adjustable shelves, two indicators and on / off Switch. Heating elements are placed in ribs at the bottom and sides. Temperature range Ambient +5°C to 250°C. To work on 220/230 volts A.C. With one number Air circulating Fan & Microprocessor based PID temperature controller. Optional: Special heavy duty air circulating fan system. Microprocessor based touch screen display system with Pen Drive for data logging, printing through PC communication & saving of data in PC. Online transfer of data without any cable/wire Interference 21 CFR software (for non-editable data) Note : Hot Air Oven is also available in high temperature (300°C) (Model No. OT-HTO-55)

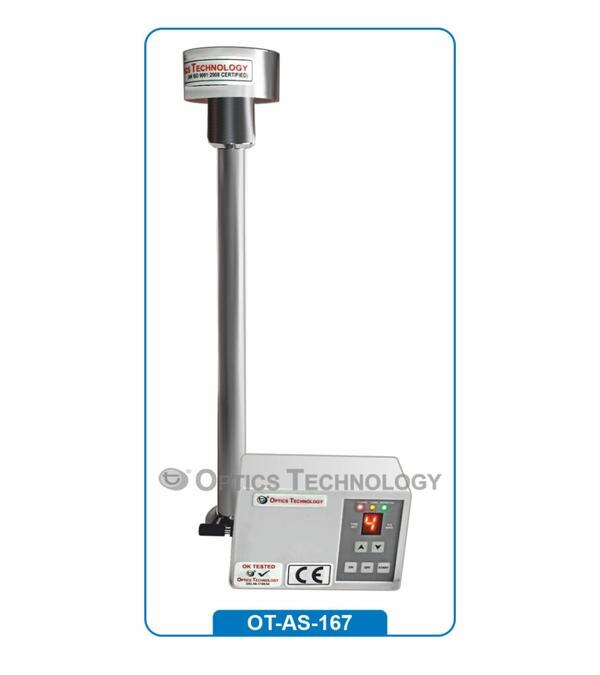

Air Sampler System consists of a small controller unit with a sling and a handheld metal centrifugal air sampling probe.

These are overhead clean air modules mounted on roof or with steel frame on the ground. Units can be built with / without casters so the clean enclosure can be moved over equipment or used to isolate a controlled process. It is basically used for filling, refilling weighing and sampling / Dispensing of Raw Material, Basic Compounds, Active Compounds, works on the principle of laminar air flow with HEPA Filters & Pre-Filters. Static pressure manometer. Available in Wooden / M.S. body duly powder coated / Stainless steel body.
