“Optics Technology” Oil making machine is of Stainless Steel (304 Grade) automatic. Oil making machine is comes with higher capacity for multiple seeds to extract oil. This oil press machine can produce oil from many edible things like peanuts, walnuts, sesame. Technical Details Power : 220-240 Volt AC RPM : Single Phase, 50-60 Hz Frequency Material : 30-40 Rotation per minute : 2-5 Kg / Hrs (Acc. to Material size) : S.S. 304 Operation Type: Automatic Phase Capacity : 3 Kg. & 6 Kg.

An automatic Ice machine for your hygienic Ice flakes requirement in research laboratories, chemicals, pharmaceuticals, medical, biotechnological and hotel industries. The machine utilizes running tap water and converts it in the form of ice flakes continuously. It is a compact, self contained unit, covering less floor area & easily installable. Constructions: Ice flaker is housed in styled Stainless Steel 304 body with stainless steel made bin with no chances of corrosion. Ice crusher used is GERMAN CRUSHER made of S.S. to give life long performance. Water is introduced into crusher assembly through a precision float valve. The inflow of water is smoothly controlled by this float valve for maintaining a required level of water irrespective of variation in pressure at the water input line with automatic cut off in case of Low water / No water supply. Ice flakes are collected into a well-insulated/ (PUF) stainless steel container. So it stays for longer time. The removal of flakes is easily possible through the stainless steel Top door which can be opened with handle while removing the ice. Moreover the equipment fitted with an ICE LEVEL CONTROLLER which will put off the system in case ice gets accumulated in the container more than the required level. Hence, there is no need of an operator being on the machine all the time. The ice controller is provided with a drain line for occasional cleaning of the container.

We will provide copper cooling coils around outer surface of the tank. Which will be properly insulated & will be connected to a condenser & compressor built-in the machine (Chiller system) this will control bath temperature as per your requirement.

SINGLE PUNCH Built on heavy cast iron body with a stainless steel hopper on top and connected by a rubber tube working on 220V AC and single phase. Automatic compression and ejection device with each revolution of the wheel drive. Size of Punch & Dia is 12-13mm. Punch & Dia set made of stainless steel. Provided only 1 No. Dia & Punch along with the machine. Features: ➤ Easily rotating wheel for making tablets. ➤ Compressing lever for adjustable hardness of tablets ➤ Adjustable lower punch for adjusting the thickness. Model Capacity OT-TMM-323/2A 100mg/150mg/250mg OT-TMM-323/2B For upto 500mg(2H.P. Motor) OT-TMM-323/2C For upto 1000mg(3H.P. Motor) Optional : Spare Dia & Punch

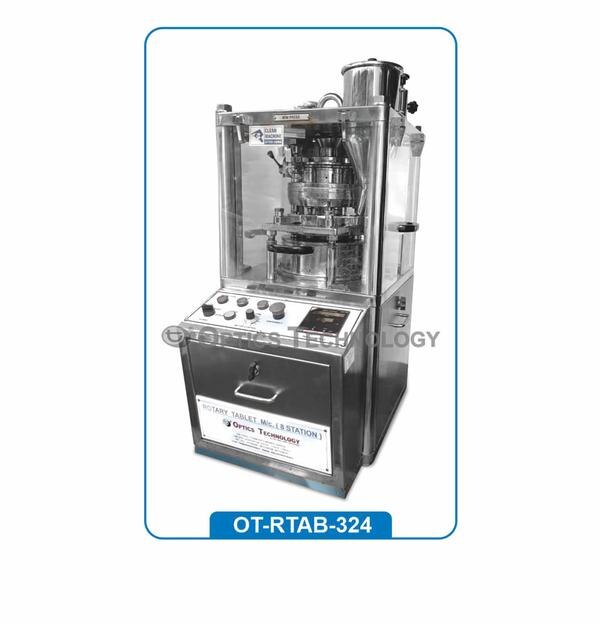

“Optics Technology” Rotary Tablet Machine is enclosed machine i.e. top half (Compression Zone) with S.S. hood & acrylic cover & the lower half of the machine is covered with malt finish S.S. cover. Specification: ➤ Reduces Noise & spread of dust in the Compression Room. ➤ External Controls for Tablet Weight & Thickness. ➤ Optimum regulation of Speed through Easy AC - VFD Speed Controls. ➤ Anti Vibration mounting, hence no foundation required. Technical Data: Number of Stations : 8, 16 Output - Tablets/Hr : 4800-14000 Turrent RPM (Min-Max) : 10-30 Max. Operating Pressure: 6 Ton Max. Tablet Diameter : 22 mm. Power : 2.0 H.P.X 1440 RPM x 3 Phase x 415 Volts Application: Tableting of pharma / ayurvedic, color (crayons) food industries, agricultural industries, camphor and confectionary products.

The vacuum pump functions by removing the molecules of air and other gases from the vacuum chamber. It is available in single-stage & Double Stage with oil & belt Motor System. It is designed for accurate measurement of melting points and for checking the melting range of the solid samples & boiling points also.

TWO-STAGE VANE PUMP To improve the backing pressure and displacement at low pressure two stages are connected in series. ANTI-SUCKBACK SYSTEM If the Power Supply fails on stops, an anti-suck back device. Prevents air or oil the pump to be drawn back into the chamber being evacuated and operated by Solenoid coil. GAS BALLAST The gas ballast allows a quantity of air to be injected into the second stage of the pump during compression to reduce the partial pressure to the pumped gas below its saturated Vapour pressure and thus prevent condensation. The saturated vapour pressure of a gas is higher when it is hot and lower when it is cold. When gas ballasting is in use, there will be increase in ultimate pressure of the pump as well as the temperature. Power : 230V AC supply Optional: Moisture Trap Non Return Valve Vacuum Gauge Air Oil Mist Exhaust Filter

Cylindrical Silicon Oil Bath Built in Magnetic Stirrer with Electronic Speed Controller Electronic Controller for Adjusting Heating Rate Digital Display of Temperature Glare – Free Background Light with Adjustable Light Intensity Provision for Holding the Melting Point Display Temperature Range 2°C above Ambient to 275°C, Readability 0.1°C

Hence No Rubbing of Parts and Negligible Wear & Tear, No Lubrication Required, Hence Oil – Free Specially For Filtration Assembly, Available
