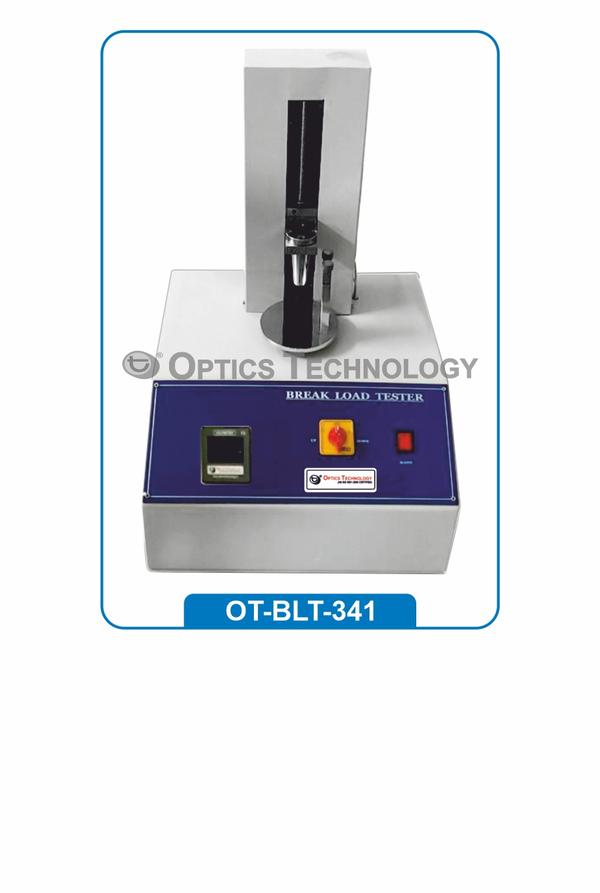

It is based on the Constant Rate of Traverse (CRT) principle. The sample is held between two jaws; the upper one is a stationary jaw while the other end is made to move at a known fixed speed with the help of Motor, Gear Box and Lead Screw arrangement. The load exerted on the Stationary jaw is sensed by a sensor connected with load cell which directly indicates the load in Digital form in Newton and kg.

Superior quality steel is used for manufacturing offer range of mixing tank S.S. tanks are manufactured by us for various industries like pharma, chemical, agricultural, food processing etc. • Stainless steel 304 body with insulation or normal. Dished, conical and flats ends. • Motors and gearbox drive as specified by customer. • Level indicator installed. • Agitating paddle. • Horizontal and vertical agitation provided. • Anti-corrosive and efficient functioning vessels. Model No. Capacity OT-SSMT-207-A 50 Gallons (190 Ltr. Approx) OT-SSMT-207-B 100 Gallons (380 Ltr. Approx) OT-SSMT-207-C 150 Gallons (570 Ltr. Approx)

Steam Jacketed Kettle that is widely used in pharma, food and various industries. This kettle is widely appreciated for its sturdy finish. Further, to meet the diversified demands of our esteemed clients. Latest technology in conformity with the international quality standards. Acknowledged for their precise dimension, high strength, abrasion resistance, easy usage, low maintenance and compact design. The inner surface of kettle is driven by attached geared motor or gear box motor attachment. The scraper attachment ensures that there is no blackening or charring of product white cooking or heating using SS-304. Model No. Capacity OT-SJK-208-A 10 Gallons (38 Ltr. Approx) OT-SJK-208-B 25 Gallons (95 Ltr. Approx) OT-SJK-208-C 50 Gallons (190 Ltr. Approx) OT-SJK-208-D 100 Gallons (380 Ltr. Approx)

The mass Mixer is designed for uniformly mixing of dry and wet material and especially suitable for powder of pharmaceuticals, Food, Herbals, Agro Chemicals & Chemicals. The mass mixer consists of a rigid fabricated structure motor, Gear box, mixing drum, stirrer and tilting device. Features: High Capacity motor Robust body Ensures no chemical reactions Technical Details Usage/ Application : Mixing Design Type : Standard Phase : SINGLE Material : STAINLESS STEEL CONTACT PARTS Power : 220 V Mode No. Capacity OT-MM-327-A 25 kg per hour OT-MM-327-B 50 kg per hour OT-MM-327-C 100 kg per hour OT-MM-327-D 200 kg per hour

Technical Data Capacity : 5 kg Least count: 0.001 kg Motor : 1/4 HP, single phase induction Gear box : Worm reduction type

The vacuum pump functions by removing the molecules of air and other gases from the vacuum chamber. It is available in single-stage & Double Stage with oil & belt Motor System. It is designed for accurate measurement of melting points and for checking the melting range of the solid samples & boiling points also.

This machine is for determining the resistance to wear off small size coarse aggregates and crushed rock. The machine consists of a hollow cylinder, mounted on a sturdy frame on ball bearings. A detachable shelf which extends throughout the inside length of the drum catches the abrasive charge and does not allow it to fall on the cover. The drum is rotated by an electric motor through a heavy duty reduction gear. Note : Drums are available in different sizes.

HEPA Filter: 0.3 μ down to 99.97% Pre Filter : 10 μ Statics Pressure Manometer U.V. Light. Statically Balanced motor blower Assembly (Heavy Duty) Electronic Interlock System Very Less Electrical Load Energy Efficient Blowers Optional: Magnehelic Gauge. LCD Display with soft touch switches

The pass box is an equipment normally installed on the wall between the clean room and any other room. It is used for transfer the material from any room to clean room or viceversa, without contaminating the air of clean room and without having to open room door. This is achieved with the help of interlocking type doors of pass box. Construction: Body is made of Wooden / M.S. Duly Powder Coated / S.S. 304. Each hinged door has wide glass viewing window, through which material kept in the pass box can be seen. These doors are electronically interlocked type, so only one door can be opened at a time. U.V. Light & fluorescent light is provided in the chamber.
