Applications include isolation and indentification of plant/human pathogens, work in virology, tissue culture, sterility testing and recombinant DNA research. This Biohazard Cabinet offers operator protection from low to moderate risk biological agents (or chemical carcinogens), while providing a sterile work environment for the procedure. The cabinet is kept under negative pressure with partial quantity of recirculated air exhausted through a HEPA filter. External exhaust from the laboratory is optional. The Biological Safety Cabinet is similar in performance and specification to the Vertical Series, described on reserse. The additional main features are as under:- Specially suited for Pathogenic work, chemical work, critical biological work involging virus and pathogens & for microbiology, biochemistry etc. Standard S.S. Perforated table. Imported Mini Pleat HEPA of 0.3 µ of an efficiency of 99.97% down to 0.3 micron Media is of glass fiber & made of pleats back & fro in an anodized aluminum frame (With Test Report). Integral powerful exhaust system. Built-in-positive Air Curtain effect to prevent inside air from going out and room air from entering in, providing total process and operator safety. Exhaust ducting to carry the air outside. Front sliding door, U.V. light, Manometer, Gas cock etc. Mini Pleat HEPA Filter in Exhaust. Virus Burn out Unit in Exhaust. FACE VELOCITY: A face velocity of 90±20 FPM is maintained. Optional: Magnahelic Gauge in place of Static Pressure Manometer. Digital Manometer U.V. Resistant Poly Carbonate sheet in place of Acrylic Sheet. LCD display with soft touch switches for Motor, U.V. Light, F.V. Light & U.V. Timer Gloves Port (Without Gloves) Automatic motorised front door lifting arrangement Online transfer of data without any cable/wire Interference MICROPROCESSOR BASED TOUCH SCREEN DISPLAY SYSTEM Display of velocity with lower and upper safe limits. Display of total run time of instrument & timer for U.V. lamp. Control of U.V. light to prevent the operator from U.V. rays as and when required. Automatic Door sensors to switch off the U.V. light when door is opened. Display of message for life of HEPA filter, U.V. light etc.

Fumigators for Pharmaceutical, Food & Dairy, Biotech industries generate high density fog with droplets size of 5-15 microns, which helps in providing maximum thrust, deeper penetration & wide spread of aerosols. Some of the common application areas it is used in this industry include Injectable, Vaccines, Tablets, Parentrals, IV fluids, Medical devices, bulk drug manufacturing areas, QC & QA areas, Microbiology lab, R&D Center, Clinical drug trial centre, Tissue culture Laboratories, Pathology Laboratories and many more. Capacity 6 Ltr. Optional : Humidistat (To Control Humidity) (Knob Type) OR Digital Humidity Controller Mechanical Timer (0-60 minutes) OR Digital Timer 360° Rotation System

(AEROSOL DISINFECTOR, FUMIGATOR) It is specially designed to create Humidity in a particular area in Green Houses, Tissue Culture, Labs, Pharmaceuticals, Packing, Printing Industries etc. For Disinfection in Operation Theaters, Path Labs, Microbiology labs, Pharmaceutical industries in Production Departments and other R & D Laboratories. Optional: Humidistat (To Control Humidity) (Knob Type) OR Digital Humidity Controller Mechanical Timer (0-60 minutes) OR Digital Timer

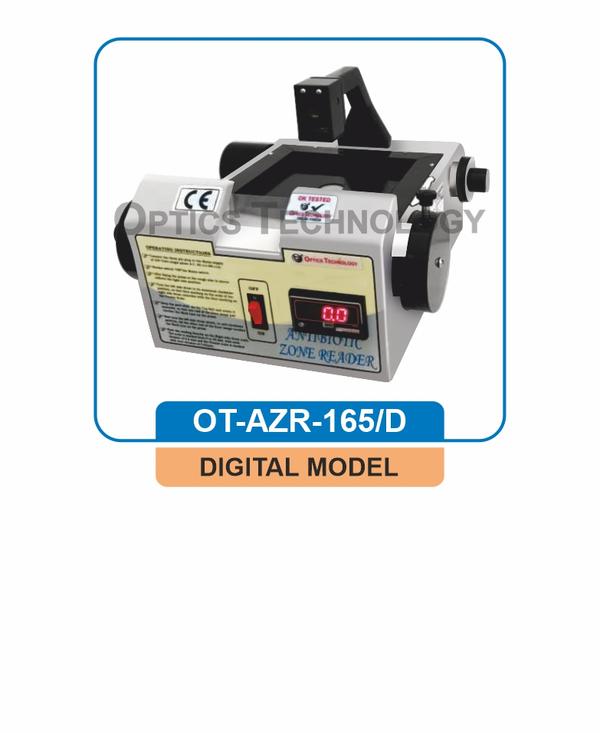

Most suitable to measure the diameter of the inhibited zone in microbiology, botany, zoology, bacteriology and pathology labs. Unique in design and measures the diameter of the inhibited zone to 0.1 mm within the range of 0 to 35 mm. Light from a source in the base passes up through the transparent and Semi transparent portion of the agar-agar, then to a reflecting mirror supported by an arm above the unit. The mirror reflects the light to a glass prism mounted at the front of the unit and the magnified image of the zone of inhibitions can be clearly seen on the prism. Supplied complete with accessories like prism, petri dish. Suitable for operation on 230 V, 50 Hz, single phase AC supply. Digital Model : Range : 0.0 to -39.9 mm.

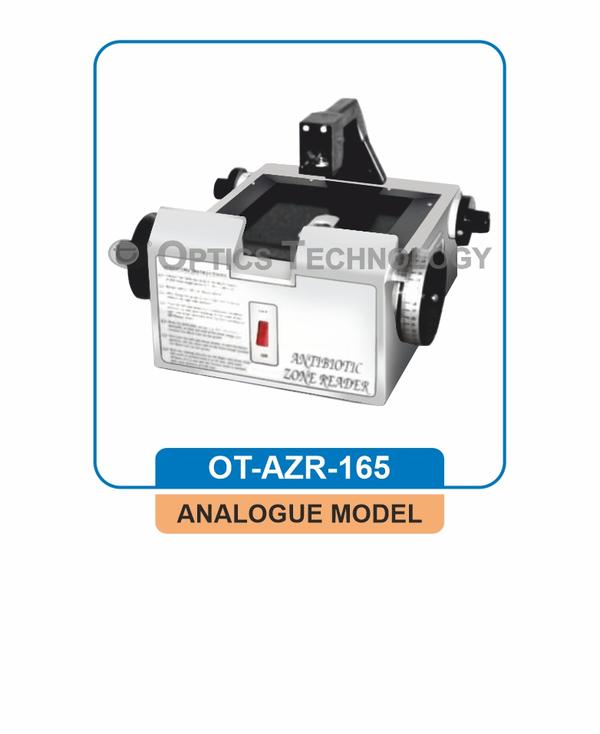

Most suitable to measure the diameter of the inhibited zone in microbiology, botany, zoology, bacteriology and pathology labs. Unique in design and measures the diameter of the inhibited zone to 0.1 mm within the range of 0 to 35 mm. Light from a source in the base passes up through the transparent and Semi transparent portion of the agar-agar, then to a reflecting mirror supported by an arm above the unit. The mirror reflects the light to a glass prism mounted at the front of the unit and the magnified image of the zone of inhibitions can be clearly seen on the prism. Supplied complete with accessories like prism, petri dish. Suitable for operation on 230 V, 50 Hz, single phase AC supply. Analogue Model: Range : 0 - 35 mm. Least Count: 0.1 mm.
