The apparatus is designed to determine the abrasion rate and impact hardness of tablets. One/Two transparent acrylic drums rotated by superior quality constant speed sturdy motor, mounted in painted sheet metal cabinet with chemical resistant epoxy coating. (Body is made of M.S. Duly Powder Coated / S.S. 304). Special Features: Realistic abrasion rate is obtained by pre-set revolutions through a pilot lamp as compared to time setting, where voltage fluctuation may change number of revolution in pre-set time. Specification: Drum Diameter : 285mm Tablet Fall Distance : 140mm Drive : 1/8 HP Power : 230 V AC Single Phase

A handy, tough and direct dial reading type tablet hardness tester, working as pair of plairs, generates breaking force in single grip. The instrument offers accurate and reproducible result much faster other conventional hardness tester.

A handy, tough and direct dial reading type tablet hardness tester, working as pair of plairs, generates breaking force in single grip. The instrument offers accurate and reproducible result much faster other conventional hardness tester.

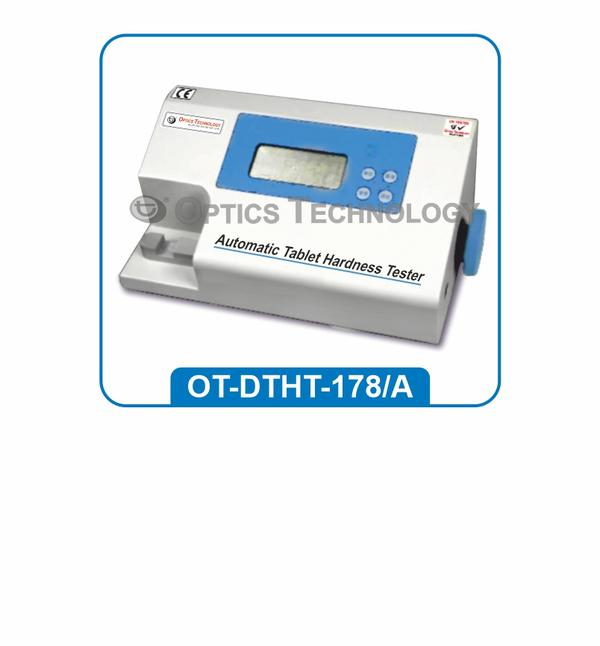

Tablet breaking force (commonly known as Tablet Hardness) is a measure of mechanical integrity of a tablet. It is widely used in pharmaceutical industries and research institutions. This tester is designed for determination of breaking force of tablets of different shapes quickly and accurately. Tablet breaking force is displayed on a LCD display.

Digital tablet hardness tester are instruments for accuracy and detecting braking hardness of tablet. Simple and direct constructions made its outward appearance pleasing to the eyes.

( Stainless Steel SS 304 with HEPA Filter ) These specially designed cabinets provide a wash of sterile filtered, clean air through Imported Mini Pleat HEPA Filters having an efficiency of 99.97% down to 0.3 micron particle size. This cabinet protects dust and other particulates on clean room garments or other materials. For use in the change Room for garment storage & inside the clean room for storage of materials. Self standing cabinet provides down flow clean air to clean room garments. Features: Wooden / M.S. Duly Powder Coated / Stainless Steel 304 Body. Can be designed in Horizontal air flow system also. “All visible exposed surfaces white laminated, giving high impact resistance with smart clean appearance.” Large interior capacity for handling upto 20 garments at a time. Special provision for wire mesh shelves (optional) for component storage. Low power consumption suitable for operation on single phase supply. Any non standard size can be made on order. Applications: Pharmaceuticals Industries, R & D Laboratories, Hospitals Electronic Components and Semiconductor Industries, Photographic Laboratories, Optical Instruments Industries. Model No. Working Size L x B x H OT-SGS-216-W/MS/SS-A 2' x 1.5' x 3.0' OT-SGS-216-W/MS/SS-B 2' x 2.0' x 3.0' OT-SGS-216-W/MS/SS-C 3' x 1.5' x 4.5' OT-SGS-216-W/MS/SS-D 3' x 2.0' x 4.5' ' OT-SGS-216-W/MS/SS-E 4' x 1.5' x 4.5 OT-SGS-216-W/MS/SS-F 4' x 2.0' x 4.5' Optional: Magnehelic Gauge

This instrument is fit to detect proper picking maturity and controls fruit softening during cold storage it measures fruit firmness and provides a quick, easy and accurate method to determine fruit maturity. Process: Cut a part of fruit turn the dial to align the drive pointer with the first calibration of the dial hold the hardness tester in hand make the tester perpendicular to the surface of the fruit under tester press, the test heads into the fruit evenly and then drive the pointer to start driving of indicator on the dial.

SINGLE PUNCH Built on heavy cast iron body with a stainless steel hopper on top and connected by a rubber tube working on 220V AC and single phase. Automatic compression and ejection device with each revolution of the wheel drive. Size of Punch & Dia is 12-13mm. Punch & Dia set made of stainless steel. Provided only 1 No. Dia & Punch along with the machine. Features: ➤ Easily rotating wheel for making tablets. ➤ Compressing lever for adjustable hardness of tablets ➤ Adjustable lower punch for adjusting the thickness. Model Capacity OT-TMM-323/2A 100mg/150mg/250mg OT-TMM-323/2B For upto 500mg(2H.P. Motor) OT-TMM-323/2C For upto 1000mg(3H.P. Motor) Optional : Spare Dia & Punch
