The instrument is designed for accurate estimation of disintegration time of tablets/capsules. It is assembled in painted sheet metal cabinet with chemical resistant epoxy coating, fitted with superior quality constant speed sturdy motor. The guide discs and strokes are confirming to Pharmacopoeia Standards. (Body is made of M.S. Duly Powder Coated / SS 304 Body). Specifications: Displacement : 55mm RPM : 30 Drive : 1/8 HP Heater : 125 watt. Power : 230 V AC Single Phase Optional: Digital Time Totalizer Water bath System Instead of Hot Plate with Thermostatics Temperature Controller Microprocessor Based PID Controller (Only with Water bath model).

The Thin Layer applicator gives dependable service in drawing thin uniform layer variables from 0 to 2 mm. (Minimum thickness attainable 0.1 mm.) Accurate design and skilled workmanship of the applicator gives no trouble in coating several plates at a time. It is made up of Aluminium finished in proper shape. Applicator: Drawing Board, Drying Rack, Spotting Guide, Developing Chamber, Glass Pipette, Silica Gel, Glass Plates & Glass Jar.

Crush Testers are designed for performing Ring Crush Test (RCT), Edge Crush Test (ECT), Flat Crush Test (FCT), Pin Adhesive Test (PAT), Concora Medium Test (CMT), Corrugated Crush Test (CCT) and other general compression tests, on a variety of materials like paper, paperboard, etc. These multi-functional equipments incorporate high accurate load cell and precise ball screw, which drives the compression platen steadily along the guide track to compress the specimen.

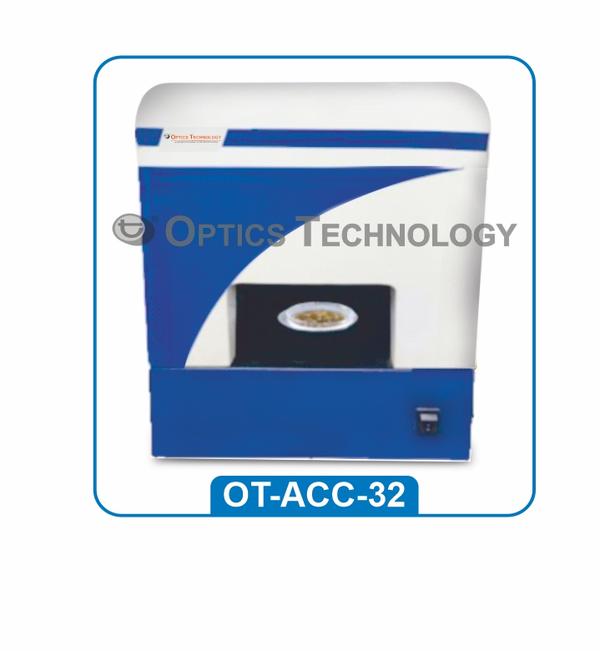

The automatic colony counter consists of a high-resolution camera with provisions for special illumination integrated into the setup to thus provide a compact imaging system. Simple to use, thus, guide the user right from image capture to the generation of the final data. Features : Compact system utilizes incident, transmitted and dark field illumination to handle different sample types. Minimum operator interaction. Automatically classify colonies according to size, shape or color. Pre-defined macro routines to handle different sample types. Customized report generation. Powerful data management utility for managing raw data, images and results. Body is made of Mild Steel Duly Powder Coated.
