Applications include isolation and indentification of plant/human pathogens, work in virology, tissue culture, sterility testing and recombinant DNA research. This Biohazard Cabinet offers operator protection from low to moderate risk biological agents (or chemical carcinogens), while providing a sterile work environment for the procedure. The cabinet is kept under negative pressure with partial quantity of recirculated air exhausted through a HEPA filter. External exhaust from the laboratory is optional. The Biological Safety Cabinet is similar in performance and specification to the Vertical Series, described on reserse. The additional main features are as under:- Specially suited for Pathogenic work, chemical work, critical biological work involging virus and pathogens & for microbiology, biochemistry etc. Standard S.S. Perforated table. Imported Mini Pleat HEPA of 0.3 µ of an efficiency of 99.97% down to 0.3 micron Media is of glass fiber & made of pleats back & fro in an anodized aluminum frame (With Test Report). Integral powerful exhaust system. Built-in-positive Air Curtain effect to prevent inside air from going out and room air from entering in, providing total process and operator safety. Exhaust ducting to carry the air outside. Front sliding door, U.V. light, Manometer, Gas cock etc. Mini Pleat HEPA Filter in Exhaust. Virus Burn out Unit in Exhaust. FACE VELOCITY: A face velocity of 90±20 FPM is maintained. Optional: Magnahelic Gauge in place of Static Pressure Manometer. Digital Manometer U.V. Resistant Poly Carbonate sheet in place of Acrylic Sheet. LCD display with soft touch switches for Motor, U.V. Light, F.V. Light & U.V. Timer Gloves Port (Without Gloves) Automatic motorised front door lifting arrangement Online transfer of data without any cable/wire Interference MICROPROCESSOR BASED TOUCH SCREEN DISPLAY SYSTEM Display of velocity with lower and upper safe limits. Display of total run time of instrument & timer for U.V. lamp. Control of U.V. light to prevent the operator from U.V. rays as and when required. Automatic Door sensors to switch off the U.V. light when door is opened. Display of message for life of HEPA filter, U.V. light etc.

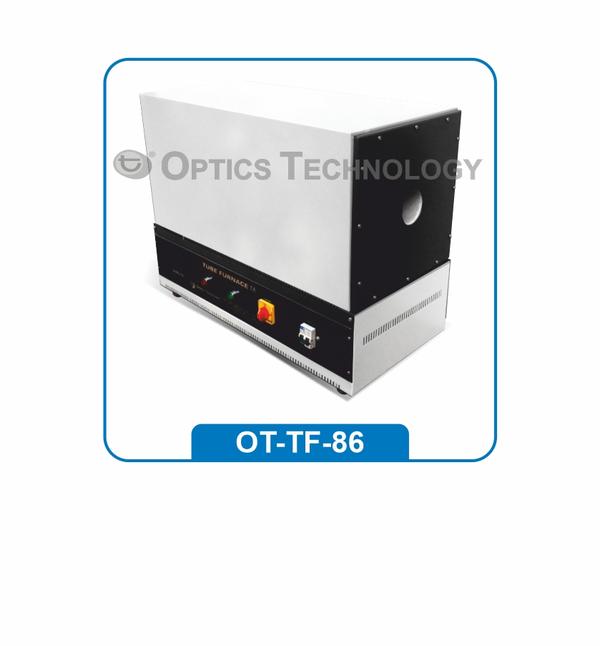

Newly designed for all application and process requiring excellent radial and perfect temperature uniformity. Heavy gauge M.S. exterior finished with epoxy powder coated. Light weight laboratory tube furnace have special ceramic fiber insulation. Temp. Controlled by Microprocessor based PID Temp. Controller having digital indication for set and process temperature. The control system includes over temperature solid state safety fuse which cuts the power in case of temperature exceeds. Operates on 230 volts. Max Working Temperature Range: 900°C, 1100°C, 1400°C

Light Weight High Temp. Ceramic Fiber Wool Insulation. Outer Body Double Walled with M.S. Duly Powder Coated / Stainless Steel Body (S.S. 304). Heating Elements are of KHANTHAL “A-1” Wire, Temperature Control Unit Consist of Microprocessor based PID controller (Digital LED Display) fitted in front of Furnace, two pilot lamps & mains On/Off switch. Power plug to work on 220 Volts AC.

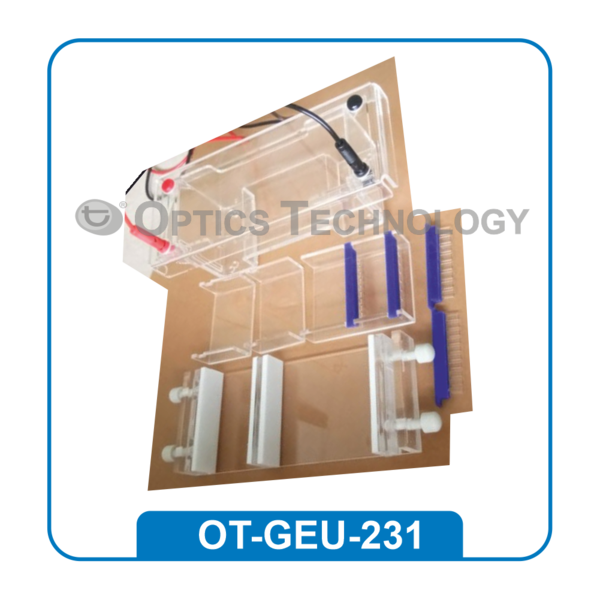

Electrophoresis of nucleic acid (DNA/RNA) in agarose gel has become an essential step in every walk of biotechnology today. High buffer-gel ratio is kept in all our systems whereby current flow is minimized; temperature rise and pH, difference are also kept at minimum levels. This results in fast and good resolution of bands. Features: Basic unit with platinum electrode assembly. Comb 2mm thick 10 well and thick comb stand Connecting cord

“Optics Technology” engaged in offering a wide range of hybridization oven used in molecular biology, labs, research lab and other labs where DNA & RNA or protein identification need to be done. We used only fine quality raw material while manufacturing we customized as per client requirement the constant rotation of the plates inside the oven that the probes used to identify protein will be distributed evenly over the membrane. With microprocessor based PID controller.

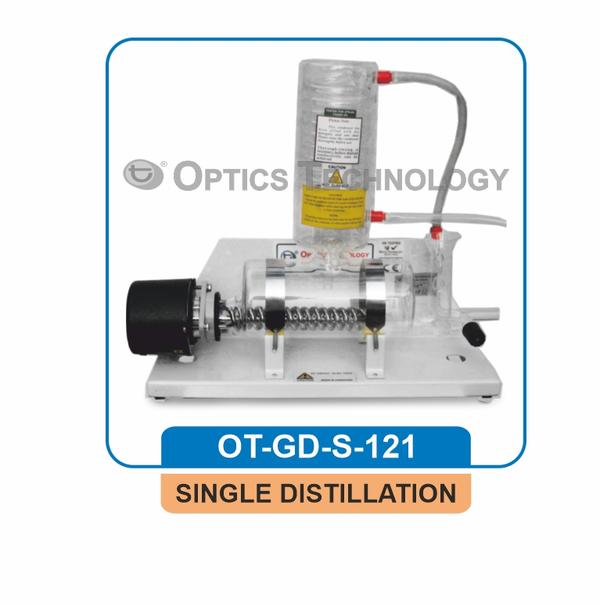

The distillation apparatus consists of boiler with heating elements embedded in glass and fused in spiral type coil internally of the bottom and tapered round glass, suitable to work on 220 Volts 50 Cycles AC complete with metallic stand rings and clamps to hold boiler condenser electric board with switch, and connecting cords. It is capable of producing pure distilled water. Also the whole unit can be hanged on wall.

The distillation apparatus consists of boiler with heating elements embedded in glass and fused in spiral type coil internally of the bottom and tapered round glass, suitable to work on 220 Volts 50 Cycles AC complete with metallic stand rings and clamps to hold boiler condenser electric board with switch, and connecting cords. It is capable of producing pure distilled water. Also the whole unit can be hanged on wall.

Air Flow: Vertical With Working table of S. S. 304 Body is made of Wooden/ M.S. Duly Powder Coated/ S.S. 304 Imported Mini Pleat HEPA Filter of 0.3µ of an efficiency of 99.97% down to 0.3µ media is of glass fiber & made of pleats back & frown in a anodized Aluminum frame. Prefilter of dry fiber washable type with the frame of on all the sides Confirm the international standards 209 E. Class 100 (As per USFED-STD. 209E) ISO Class 5 (As per ISO-14644.1), IEC 61010-1:2010, ISO 29463-5:2022 Statically Balanced motor blower Assembly (Heavy Duty) Velocity at the output of HEPA is 90 ± 20 FPM Noise level is very low Vibration is also very low Normal working fluorescent Light Static pressure Manometer U. V. Light 1 x 30/15 watts Front Door of Acrylic Sheet (Transparent) Gas cock Or any non standard size Optional: Magnahelic Gauge in place of Static Pressure Manometer. Digital Manometer U.V. Resistant Poly Carbonate sheet in place of Acrylic Sheet. Automatic Safety system for U.V. light. Automatic start system filtered Air & Normal light in Laminar Air Flow LCD display with soft touch switches for Motor, U.V. Light, F.V. Light & U.V. Timer Automatic motorised front door lifting arrangement Online transfer of data without any cable/wire Interference MICROPROCESSOR BASED TOUCH SCREEN DISPLAY SYSTEM Display of velocity with lower and upper safe limits. Display of total run time of instrument & timer for U.V. lamp Control of U.V. light to prevent the operator from U.V. rays as and when required. Automatic Door sensors to switch off the U.V. light when door is opened. Display of message for life of HEPA filter, U.V. light etc.

Working table of S.S. 304 Body is made of Wooden/ M.S. Duly Powder Coated/ S.S. 304 Imported Mini Pleat HEPA Filter of 0.3μ of an efficiency of 99.97% down to 0.3μ media is of glass fiber & made of pleats back & frown in a anodized Aluminum frame. Pre filter of dry fiber washable type with the frame of on all the sides. Confirm the international standards 209 E. Class 100 (As per USFED-STD. 209E) ISO Class 5 (As per ISO-14644.1), IEC 61010-1:2010, ISO 29463-5:2022 Statically Balanced motor blower Assembly (Heavy Duty) Velocity at the output of HEPA is 90 ± 20 FPM Noise level is very low Vibration is also very low. Normal working fluorescent Light. Static pressure Manometer U. V. Light 1 x 30/15 watts. Front Door of Acrylic Sheet (Transparent) Or any non standard size Optional: Magnahelic Gauge in place of Static Pressure Manometer. Digital Manometer U.V. Resistant Poly Carbonate sheet in place of Acrylic Sheet. Automatic Safety system for U.V. light. Automatic start system filtered Air & Normal light in Laminar Air Flow LCD display with soft touch switches for Motor, U.V. Light, F.V. Light & U.V. Timer Automatic motorised front door lifting arrangement Online transfer of data without any cable/wire Interference
