Basically used in scientific research, teaching, medicine and petroleum chemical industries. Material: Glass Flask Capacity: 1000 ml.

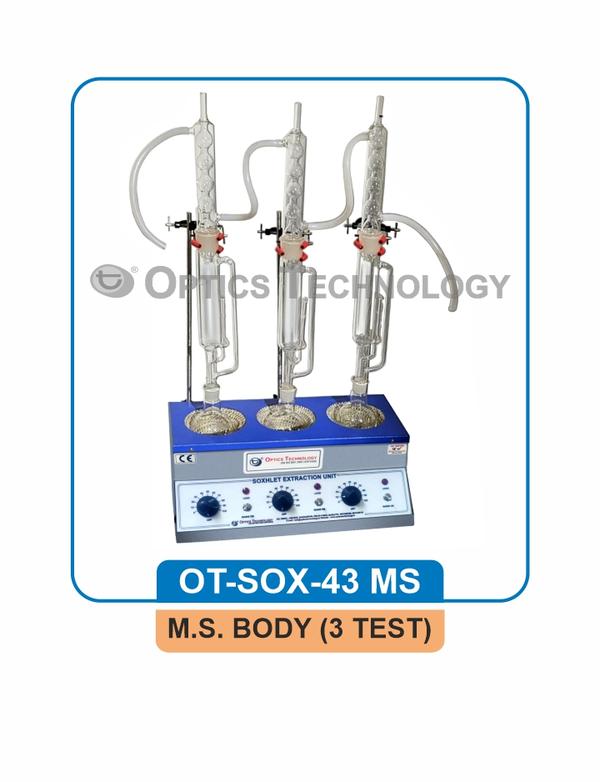

The complete soxhlet apparatus consists of solvent reservoir extraction assembly with 3/6 extraction places of various diameter to suit 100ml flasks to 250ml flasks and built in steam generator. Complete with stand, clamp holder soxhlet extraction (condenser) glass and extraction flask of 60 ml volume. Temp. range 50°C to 350°C. Controlled by Sunvic energy regulator. Body is made of Mild Steel Duly Powder Coated/S.S. 304.

The apparatus is designed to determine the abrasion rate and impact hardness of tablets. One/Two transparent acrylic drums rotated by superior quality constant speed sturdy motor, mounted in painted sheet metal cabinet with chemical resistant epoxy coating. (Body is made of M.S. Duly Powder Coated / S.S. 304). Special Features: Realistic abrasion rate is obtained by pre-set revolutions through a pilot lamp as compared to time setting, where voltage fluctuation may change number of revolution in pre-set time. Specification: Drum Diameter : 285mm Tablet Fall Distance : 140mm Drive : 1/8 HP Power : 230 V AC Single Phase

The apparatus is suitable for testing of Dissolution rate of tablet and capsule, it consists of main transparent acrylic tank housing. Thermostatically/ Digitally controlled immersion heater, drain cock and transparent hemispherical unbreakable vessel. The base unit is made of chemical resistant powder coated sturdy frame housing, Control panel which includes Electronic regulator and thermostat. An electronic motor is mounted on chrome plated rod, operates Paddle/Basket. (Body is Available in M.S. / S.S. 304). Optional: Digital RPM Indicator Digital Timer Microprocessor Based PID Controller

The unit is equipped with acrylic water bath controlled by digital temperature controller which is normally set at 37ºC and duly fitted with pump which recirculates the water thus maintaining homogeneous temperature. The acrylic water bath is with digital timer can be set ranging from 1 to 999 minutes add it “BEEPS” at the end of the set time. The unit is equipped with Digital setting of RPM as an optional which can be controlled from 25 to 150 RPM. The equipment is duly fitted with motorized lifting to facilitate easy operation of the stirrers’ assembly. Digital dissolution rate test apparatus is equipped With Digital RPM Indicator – Range 25 to 150 RPM Digital Timer – Range 1 to 999 minutes Digital temperature indicator – Range 30ºC to 50ºC Body is available M.S. / S.S. 304

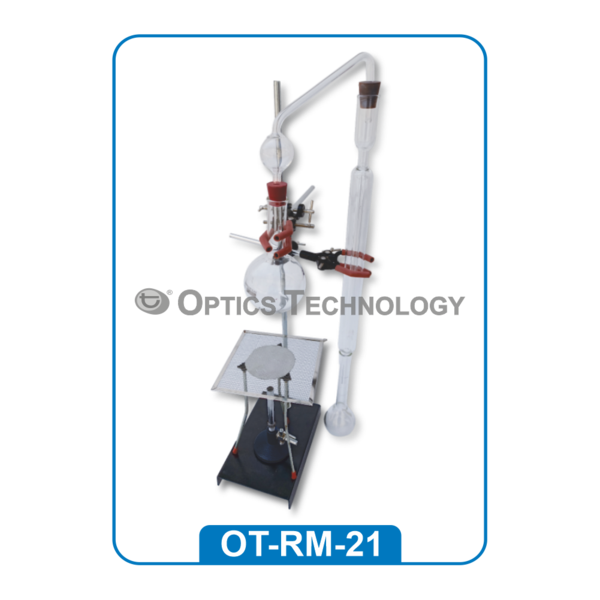

R M Value Apparatus, also known as Polenske’s Apparatus is fabricated from Borosilicate Glass and used for determining butterfat, soluble and insoluble volatile acids in fats and oils. It comprises of 300ml flask still head, condenser and receiver flask graduated at 100 and 110 ml.

Cleveland Flash and Fire Point Apparatus is determine of flash and fire points of petroleum and other liquids except Fuel oils and those materials having an open cup Flash 79ºC to 400ºC. Electrically Operated heater with Temp. regulating device. Heating is regulated by Energy Regulator. Operates on 220 V AC mains.

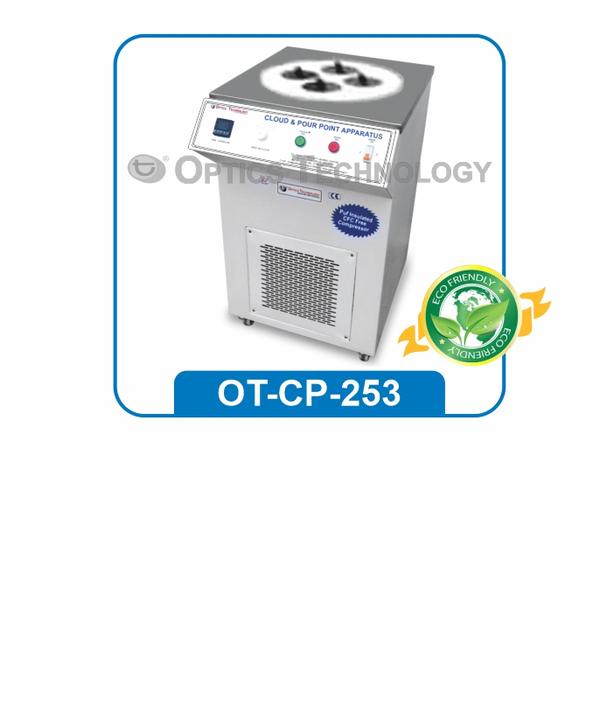

CLOUD & POUR POINT APPARATUS (REFRIGERATED)

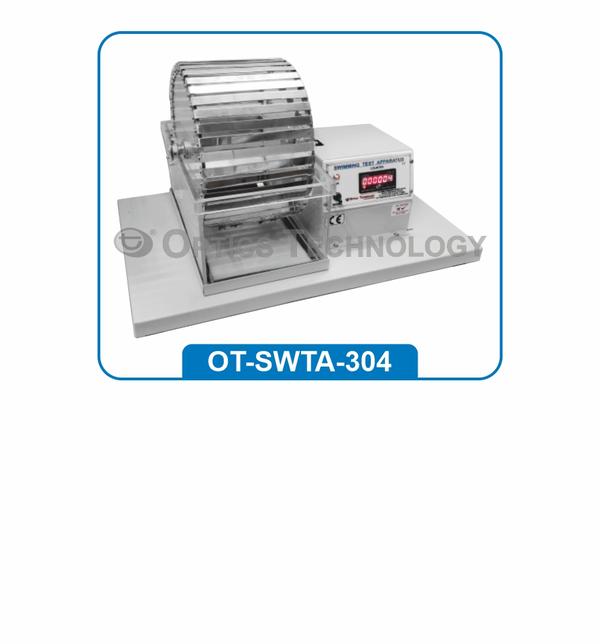

The locomotor activity can be easily measured using SWIMMING TEST APPARATUS which consists of clear perspex rotating drum with ribs in a clear perspex tank and Digital counter with resetting facility to count the activity of the animal. Both rats and mice may be used for testing in this apparatus. This Apparatus consists of ONE DRUM and perspex tank as described above for testing. Optional : Digital Timer
