(AUTOMATIC HUMIDITY CONTROLLER) CFC Free Compressor Body is made of S.S. 304 / M.S. Duly Powder Coated. Designed to remove excess moisture from the Atmosphere where manufacturing activities of Tablets, Capsules & electronic parts are performed. These are also useful to maintain the quality of precision Equipment’s & instruments where accuracy of Humidity is counted. Humidity is brought down upto 40% Accuracy ±3% RH. Humidity is controlled by digital humidity controller with Hermetically sealed Compressor. Castor wheel mounted body makes the unit very easily movable. Automatic Humidity controller is able to show desired value of humidity and actual value shown in the upper part of display. It show accurate result. With Pre Filter Optional: Voltage Stabilizer

CFC FREE COMPRESSOR Body is made of S.S. 304 / M.S. Duly Powder Coated. Designed to remove excess moisture from the Atmosphere where manufacturing activities of Tablets, Capsules & electronic parts are performed. These are also useful to maintain the quality of precision Equipment’s & instruments where accuracy of Humidity is counted. Humidity is brought down upto 40% Accuracy ±3% RH. Humidity is controlled by special “Honeywell USA” humidistat with Hermetically sealed Compressor. Castor wheel mounted body makes the unit very easily movable. With Pre Filter Optional: Digital Humidity Controller Voltage Stabilizer

Optional: Double Door Vacuum Breaker Valve Calibration Port Safety Alarm Specially designed Electronic Lid locking system to make sure lid is locked properly Single channel data logger system (Only with Automatic Model) Printing System with Thermal Printer (Only with Automatic Model) 21 CFR Software (only with touch screen model) Automatic System OR Microprocessor Based Automatic Touch Screen Display System

Inner chamber jacket and boiler is made of stainless steel. Sterilization cycle is controlled by three way valve or multi port valve. It is fitted with automatic pressure control switch, (indfoss piezostat), safety valve, pressure gauge, pressure release valve, water level indicator with cord & plug. Lid is made of S.S. 304 with water level cut-off device & Digital Temperature controller Cum Timer. Optional: Double Door Vacuum Breaker Valve Calibration Port Safety Alarm Specially designed Electronic Lid locking system to make sure lid is locked properly Single channel data logger system (Only with Automatic Model) Printing System with Thermal Printer (Only with Automatic Model) 21 CFR Software (only with touch screen model) Automatic System OR Microprocessor Based Automatic Touch Screen Display System

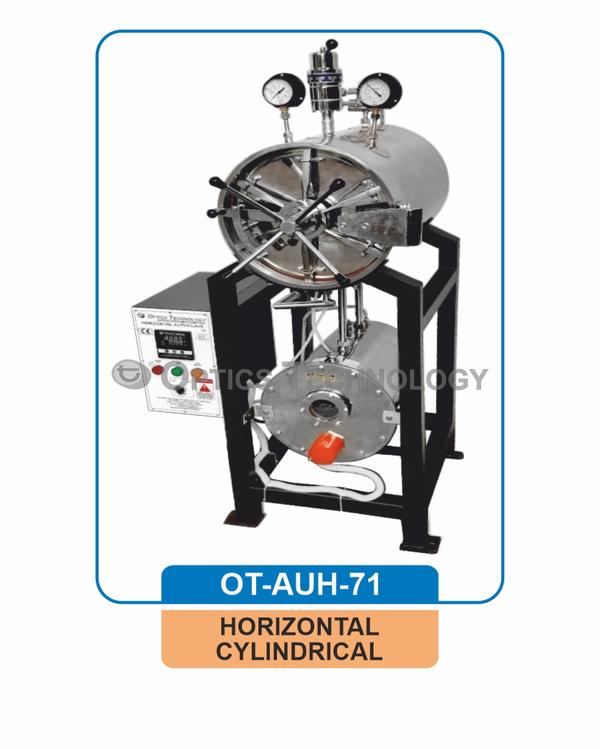

Inner chamber is made of thick stainless steel (304). Outer body is made of thick Mild Steel Duly Powder Coated / Stainless Steel 304. The chamber is absolutely leak proof and can be operated at any Selected point in between 5 to 20 pounds per sq. Inch. It is provided with pressure gauge, pressure release valve, S. S. Tray, safety valve, water level indicator with cord, Plug & Pressure Control Switch. It is provided with Radial Locking System with Automatic Water Level cut off device for element as a safety feature and with Digital Temperature Controller cum Timer. Optional : Vacuum Breaker Valve Calibration Port Safety Alarm Specially designed Lid locking system to make sure lid is locked properly Single Channel Data Logger System (Only with Automatic model) Printing system with thermal printer 21 CFR Software Automatic System OR Microprocessor Based Touch Screen Display system

Microprocessor based Touch screen display system with special features Automatic System With features like SETTING Sterilization Temp. Soak Time Purge On / Off set point Exhaust Set Point High Alarm Set Point ETC. Digital Pressure Indication with respect to temperature. Touch Screen (for Data Logging through PEN DRIVE) Pen Drive for saving of data for printing through PC communication Graphical presentation of Pressure with respect to Temperature Error indications (Both audible and visible) for Low water Level, Sensor Failure and High Temperature Cross Limit Optional: Vacuum Breaker Valve Calibration Port Specially designed Lid locking system to make sure lid is locked properly Printing system with thermal printer 21 CFR Software

Provided with microprocessor based LCD Display with Digital Temp. Controller Cum Timer system for setting temperature, purge time, exhaust time etc. Autoclave is controlled with the settings on this controller. The chamber is absolutely leak proof and can be operated at any Selected point in between 5 to 20 pounds per sq. Inch. It is provided with pressure gauge, pressure release valve, S.S. Basket, safety valve, water level indicator with cord, Plug & Pressure Control Switch. It is provided with Radial Locking System with Automatic Water Level cut off device for element. Optional : Vacuum Breaker Valve Calibration Port Safety Alarm Specially designed Lid locking system to make sure lid is locked properly Single channel data logger system (Only with Automatic Model) Printing System with Thermal Printer 21 CFR Software Automatic System (Only for Normal Autoclave Vertical Model) OR Microprocessor Based Automatic Touch Screen Display System with Data Logging

nner chamber is made of thick Stainless Steel (304). Outer body is made of thick Mild Steel / Stainless Steel 304. The chamber is absolutely leak proof and can be operated at any Selected point in between 5 to 20 pounds per sq. Inch. It is provided with pressure gauge, pressure release valve, S.S. Basket, safety valve, water level indicator with cord, Plug & Pressure Control Switch. It is provided with Radial Locking System with Automatic Water Level cut off device for element as a safety feature and Digital Temp. Controller Cum Timer. Temperature Range 121ºC ptional: Vacuum Breaker Valve Calibration Port Safety Alarm Specially designed Lid locking system to make sure lid is locked properly Single channel data logger system (Only with Automatic Model) Printing System with Thermal Printer 21 CFR Software Automatic System (Only for Normal Autoclave Vertical Model) OR Microprocessor Based Automatic Touch Screen Display System with Data Logging

Steam Jacketed Kettle that is widely used in pharma, food and various industries. This kettle is widely appreciated for its sturdy finish. Further, to meet the diversified demands of our esteemed clients. Latest technology in conformity with the international quality standards. Acknowledged for their precise dimension, high strength, abrasion resistance, easy usage, low maintenance and compact design. The inner surface of kettle is driven by attached geared motor or gear box motor attachment. The scraper attachment ensures that there is no blackening or charring of product white cooking or heating using SS-304. Model No. Capacity OT-SJK-208-A 10 Gallons (38 Ltr. Approx) OT-SJK-208-B 25 Gallons (95 Ltr. Approx) OT-SJK-208-C 50 Gallons (190 Ltr. Approx) OT-SJK-208-D 100 Gallons (380 Ltr. Approx)
