(GMP MODEL / NON GMP MODEL) (a) OINTMENT / TUBE FILLING MACHINE (Hand Operated) (b) OINTMENT / TUBE FILLING MACHINE (Foot Operated) (c) OINTMENT / TUBE FILLING MACHINE CE SEMI AUTOMATIC (a) Capacity: 100 gm (b) Capacity: 250 gm

(a) OINTMENT / TUBE FILLING MACHINE (Hand Operated) (b) OINTMENT / TUBE FILLING MACHINE (Foot Operated) (c) OINTMENT / TUBE FILLING MACHINE CE SEMI AUTOMATIC (a) Capacity: 100 gm (b) Capacity: 250 gm

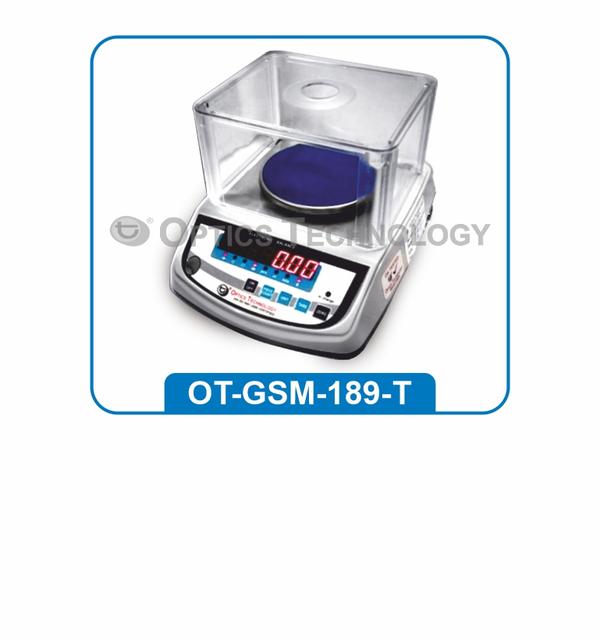

The instrument is used for accurately measure the mass of a substance. Easy to read Backlight LCD Display it provide User-selectable environmental filters and brightness settings. Specification : ➢ High Resolution, Quick Weighing ➢ Based on E.M.F.C. Technology ➢ Tare range upto max. Capacity ➢ Multiple Weighing Units ➢ Auto – Timing Calibration ➢ Percentage (%) Weighing ➢ Level Indicator, Adjustable fit ➢ Counting Weighing mode ➢ Units Conversion and data output ➢ 230 V AC Power supply

The instrument is used for accurately measure the mass of a substance. Easy to read Backlight LCD Display it provide User-selectable environmental filters and brightness settings. Specification : ➢ High Resolution, Quick Weighing ➢ Based on E.M.F.C. Technology ➢ Tare range upto max. Capacity ➢ Multiple Weighing Units ➢ Auto – Timing Calibration ➢ Percentage (%) Weighing ➢ Level Indicator, Adjustable fit ➢ Counting Weighing mode ➢ Units Conversion and data output ➢ 230 V AC Power supply

It’s the most ideal ‘LEAK TEST’ instrument for checking Blister Packs and Strips / Pouches. The Vacuum Pump ensures that a high level of vacuum is created in the shortest possible time. A vacuum gauge is provided to indicate the vacuum level. A 0 to 5 minute timer helps the operator attend to other chores at a time. Specifications: OT-LTA-25/10 OT-LTA-25/12 Desiccator Diameter 250mm (10“ Dia) 300mm (12” Dia) Rating 5A 230V Single Phase Vacuum Level 30“ Hg Timer 15 minute (Mechanical/Digital) Desiccator Polycarbonate Body Stainless Steel 304 Actual Size (Inches) 20” (W) x 14“ (D) x 10.5” (H)

Capacity Least Count 600 gm 0.01gm (10mg)

This machine uses steam based process for complete sterilization of cans and bottles after sealing. It is provided with pressure gauge, safety valves, Thermometer and release valves. Model No. Capacity OT-CR-209/A 20 Cans OT-CR-209/B 90-100 Cans OT-CR-209/C 250-300 Cans

Single chamber vacuum packaging machines can finish the whole programs of vacuum extraction, sealing, cooling and exhaust automatically. The products after packing by Single Vacuum packing machines can be prevented from oxidation, going mould, insects or getting damp, thus can be kept fresh for longer time with suitable capacity vacuum pump. The machine is useful for packing of meat products, sea food, Dry Fruits, medicine, electronic components, hardware’s and medical instruments etc. Model No. Size SealingLength Sealing Power W x D x H OT-VPM-213A 440 x 420 x 100 mm 400 mm 500 (W) OT-VPM-213B 530 x 525 x 100 mm 500 mm 750 (W) OT-VPM-213C 700 x 620 x 250 mm 600 mm 900 (W)

SINGLE PUNCH Built on heavy cast iron body with a stainless steel hopper on top and connected by a rubber tube working on 220V AC and single phase. Automatic compression and ejection device with each revolution of the wheel drive. Size of Punch & Dia is 12-13mm. Punch & Dia set made of stainless steel. Provided only 1 No. Dia & Punch along with the machine. Features: ➤ Easily rotating wheel for making tablets. ➤ Compressing lever for adjustable hardness of tablets ➤ Adjustable lower punch for adjusting the thickness. Model Capacity OT-TMM-323/2A 100mg/150mg/250mg OT-TMM-323/2B For upto 500mg(2H.P. Motor) OT-TMM-323/2C For upto 1000mg(3H.P. Motor) Optional : Spare Dia & Punch
