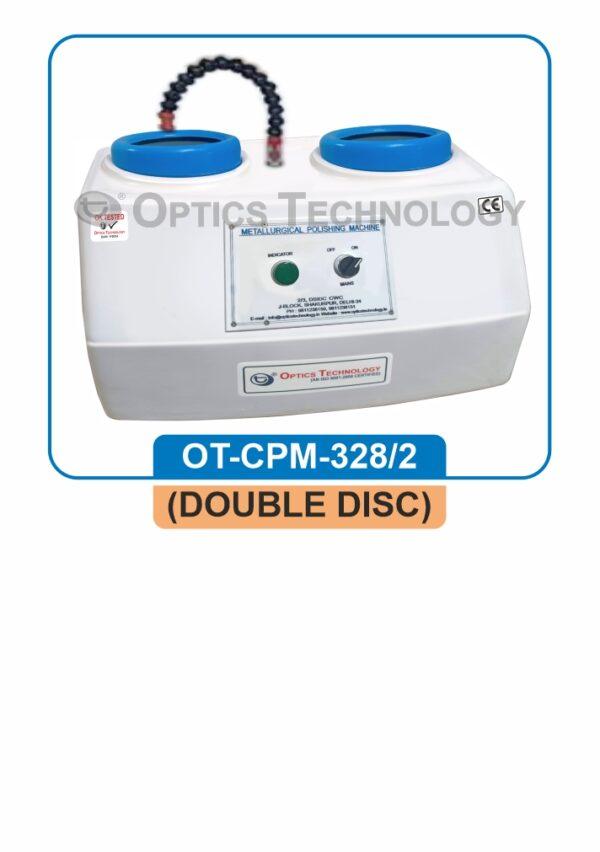

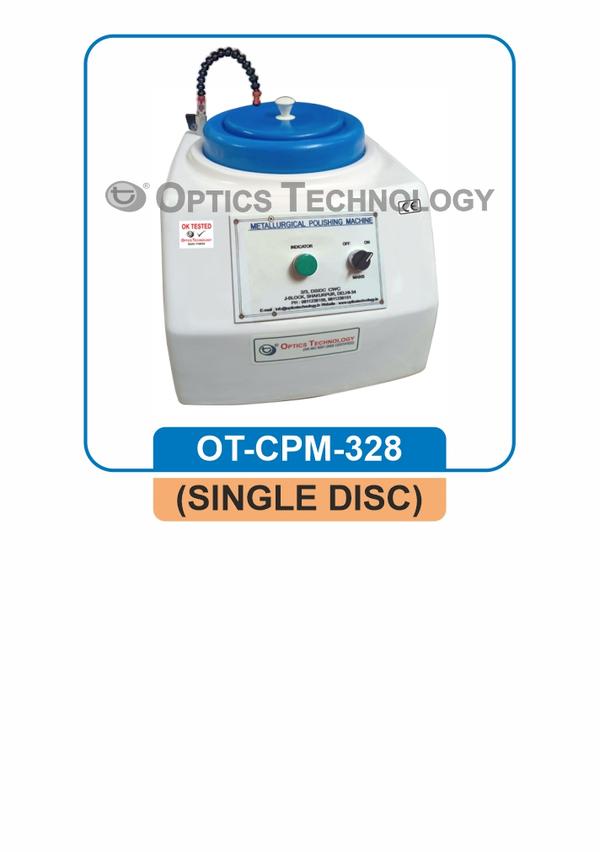

Polishing (for Metallurgical Samples) machines are used for preparing metallographic specimens & petrographic from pregrinding to smooth surface finish, for microstructure examination. The machine is basically of motor driven disc type to provide stepless fixed speed 900 RPM. The driven is provided by suitable H.P. single phase 220V A.C. Motor. The disc of 8″ dia.

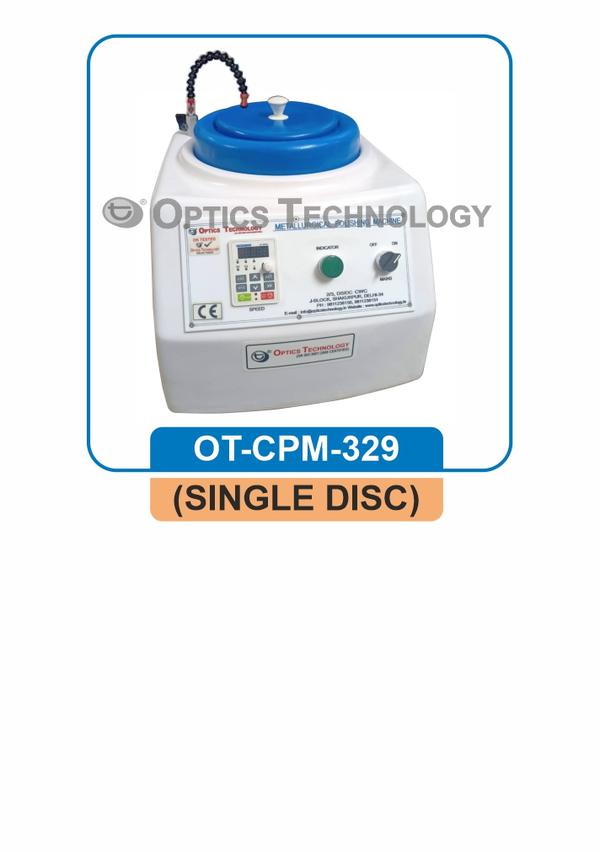

With Drive speed control knob and Digital speed indicator. The machine is basically of motor driven disc type to provide stepless variable speed from 50 to 1140 RPM approx. The driven is provided by suitable H.P. single phase 220V A.C. Motor. The disc of 8″ dia.

Laboratory fume hoods are one of the most important components used to protect laboratory personnel from exposure to hazardous chemicals and agents used in the laboratory. Cabinet is made of : Wooden Body / M.S. Duly Powder Coated / Stainless Steel (304). Interiors acid resistant material coated with fire proof epoxy paint & further fixed on storage cabinet. Working table is covered with Granite Front door is made of 6mm clear Toughened glass. Counter weight balance Front Door. Vertical sliding facility & the front door can be stopped at any point. Exhaust blower consists of single phase motor connected with a PVC Exhaust Ducting. Standard ducting upto 6’ is provided. OR ANY NON STANDARD SIZE. Optional: Base Storage Cabinet P.P. Sink with Swan Neck Water Tap Air flow monitor (LCD Display) Automatic Motorized front door lifting arrangement Touch Screen Display with Air Flow Monitor Scrubber System

The instrument is designed for accurate estimation of disintegration time of tablets/capsules. It is assembled in painted sheet metal cabinet with chemical resistant epoxy coating, fitted with superior quality constant speed sturdy motor. The guide discs and strokes are confirming to Pharmacopoeia Standards. (Body is made of M.S. Duly Powder Coated / SS 304 Body). Specifications: Displacement : 55mm RPM : 30 Drive : 1/8 HP Heater : 125 watt. Power : 230 V AC Single Phase Optional: Digital Time Totalizer Water bath System Instead of Hot Plate with Thermostatics Temperature Controller Microprocessor Based PID Controller (Only with Water bath model).

The apparatus is designed to determine the abrasion rate and impact hardness of tablets. One/Two transparent acrylic drums rotated by superior quality constant speed sturdy motor, mounted in painted sheet metal cabinet with chemical resistant epoxy coating. (Body is made of M.S. Duly Powder Coated / S.S. 304). Special Features: Realistic abrasion rate is obtained by pre-set revolutions through a pilot lamp as compared to time setting, where voltage fluctuation may change number of revolution in pre-set time. Specification: Drum Diameter : 285mm Tablet Fall Distance : 140mm Drive : 1/8 HP Power : 230 V AC Single Phase

“Optics Technology” Oil making machine is of Stainless Steel (304 Grade) automatic. Oil making machine is comes with higher capacity for multiple seeds to extract oil. This oil press machine can produce oil from many edible things like peanuts, walnuts, sesame. Technical Details Power : 220-240 Volt AC RPM : Single Phase, 50-60 Hz Frequency Material : 30-40 Rotation per minute : 2-5 Kg / Hrs (Acc. to Material size) : S.S. 304 Operation Type: Automatic Phase Capacity : 3 Kg. & 6 Kg.

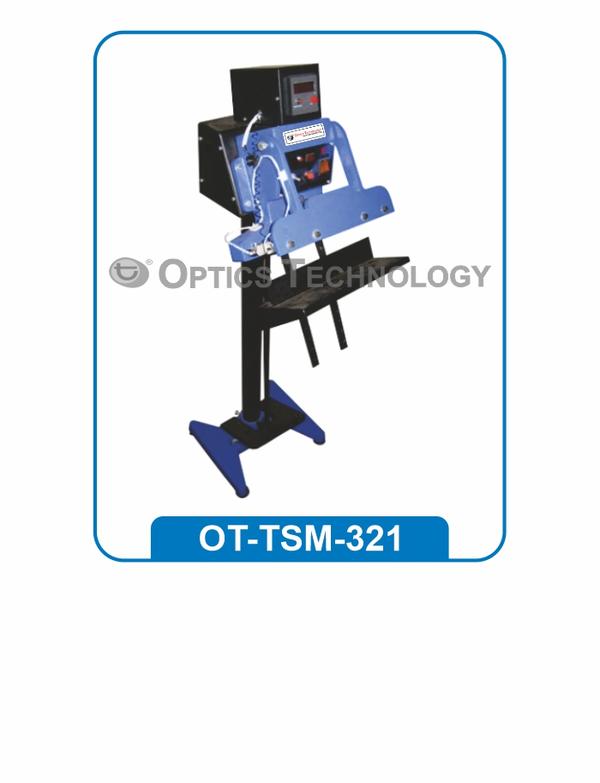

Technical Details: Machine dimension LX W X H (mm) : 500 x 600 x 1200 Power Consumption and power supply : 400 W and 230 volt Single Phase Operated : Foot operated Sealing Length : 150mm Sealing Width : 8mm Machine speed : 10-15 tube / min Suitable for Tube :LD BOPP Laminate Tube

SINGLE PUNCH Built on heavy cast iron body with a stainless steel hopper on top and connected by a rubber tube working on 220V AC and single phase. Automatic compression and ejection device with each revolution of the wheel drive. Size of Punch & Dia is 12-13mm. Punch & Dia set made of stainless steel. Provided only 1 No. Dia & Punch along with the machine. Features: ➤ Easily rotating wheel for making tablets. ➤ Compressing lever for adjustable hardness of tablets ➤ Adjustable lower punch for adjusting the thickness. Model Capacity OT-TMM-323/2A 100mg/150mg/250mg OT-TMM-323/2B For upto 500mg(2H.P. Motor) OT-TMM-323/2C For upto 1000mg(3H.P. Motor) Optional : Spare Dia & Punch

COMPACT TABLE TOP MODEL Polishing (for Metallurgical Samples) machines are used for preparing metallographic specimens & petrographic from pregrinding to smooth surface finish, for microstructure examination. The machine is basically of motor driven disc type to provide stepless fixed speed 900 RPM. The driven is provided by suitable H.P. single phase 220V A.C. Motor. The disc of 8″ dia.
