Technical Data: Frame Material : ABS Temperature measure range : 0~200.0°C Temperature accuracy : ± 1.0°C TPM measure range : 0.5~40% TPM accuracy : ± 2% (40.0~190.0°C) TPM resolution : ± 0.1% TPM response time : <15 Sec. Display : LED Battery Operated and life below 20°C : About 25 hours of continuous use.

“Optics Technology” Ductless Fume Hood basic offers variety of functionlities. Body is made of Wooden / M.S. Duly Powder Coated / S.S. 304. Eco friendly and cost effective. Mini pleat Hepa Filter of 0.3µ of an efficiency of 99.97% down to 0.3µ media is of glass fiber & made of pleates back & frow & packed in a anodized aluminum frame with carbon filter. Working table is covered with Chemical Resistant Granite. Front door is made of 6mm clear glass in Aluminium Frame duly Powder coated and connected with a counter weight balance through a nylon rope. The door will have the provision of vertical sliding facility. Internal Structure is coated with acid & fire resistance coating. Front door is made of 6mm clear toughened glass with easily sliding of up & down position. Exhaust blower of single phase Electric motor (1 H.P.) with 2500 RPM connected which is inbuilt in the hood. Ventilated base with storage cabinet of selection off drawer & doors. Light luminance of 140 lux with light lamp of anti corrosive. Power Supply: 220 V AC, Single Phase, 50 Hz. Optional: Base storage cabinet Air Flow Monitor (LCD Display). P.P. Sink with Swan Neck Water Tap Automatic motorized front door lifting arrangement. Scrubber System

“Optics Technology” Ductless Fume Hood basic offers variety of functionlities. Body is made of Wooden / M.S. Duly Powder Coated / S.S. 304. Eco friendly and cost effective. Mini pleat Hepa Filter of 0.3µ of an efficiency of 99.97% down to 0.3µ media is of glass fiber & made of pleates back & frow & packed in a anodized aluminum frame with carbon filter. Working table is covered with Chemical Resistant Granite. Front door is made of 6mm clear glass in Aluminium Frame duly Powder coated and connected with a counter weight balance through a nylon rope. The door will have the provision of vertical sliding facility. Internal Structure is coated with acid & fire resistance coating. Front door is made of 6mm clear toughened glass with easily sliding of up & down position. Exhaust blower of single phase Electric motor (1 H.P.) with 2500 RPM connected which is inbuilt in the hood. Ventilated base with storage cabinet of selection off drawer & doors. Light luminance of 140 lux with light lamp of anti corrosive. Power Supply: 220 V AC, Single Phase, 50 Hz. Optional: Base storage cabinet Air Flow Monitor (LCD Display). Touch Screen Model (Air Flow Touch Screen Display) P.P. Sink with Swan Neck Water Tap Automatic motorized front door lifting arrangement. Scrubber System

D.C. Motor special system shaker to work on 220 Volts A.C. for variable and smooth function speed control by speed regulator. It is general purpose machine and found useful for mixing or agitation ingredients, solution in flasks, bottles, beakers and kahn racks etc. Upper tray covered with rubber floor and sides of the tray are slotted to take parallel and cross bars cover with rubber. The bars are tightened with washers and fly nuts which can be adjusted as per the requirement. Optional: Digital RPM Indicator Mechanical Timer OR Digital Timer It can carry any Flask of size 100ml, 250ml, 500ml. Body is made of mild steel duly powder coated

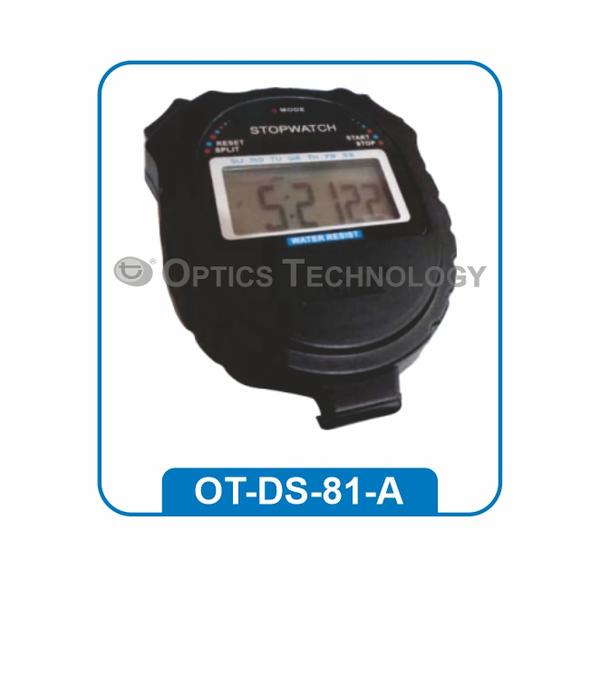

Beep alarm with chime and snooze 30 second correction for synchronization 12/24 hour display for user option. Maximum counting 23 hours 59 minutes 59 seconds

Triple Walled Working up to 22 PSI to 25 PSI, Working Temp. 121ºC to 134°C. The inner chamber is made of thick Stainless Steel 304, with the steam stock facility. The outer body is made of thick Stainless Steel 304 / M.S. Duly Powder-Coated body, chamber is absolutely Leak Proof Chamber. Fitted with Digital Temp. Controller cum Timer. It is provided with pressure gauge, pressure release valve, Pressure Stat, Safety Valve, With water Level indicator with cord, Plug, Pressure Control Switch, S.S. Lid, Safety Valve for jacket & Dead Weight With wing nut System, With Water Level cut-off device for safety of Heaters. Optional: Vacuum Breaker Valve Calibration Port Safety Alarm 21 CFR Software (Only with touch screen model) Automatic System OR Microprocessor Based Automatic Touch Screen Display system with Data Logging

Double walled, Inner chamber made of Stainless Steel 304. Outside Mild Steel painted in epoxy powder coating / stainless steel 304 with wiremesh adjustable shelves, two indicators and on / off Switch. Heating elements are placed in ribs at the bottom and sides. Temperature range Ambient +5°C to 250°C. To work on 220/230 volts A.C. With one number Air circulating Fan. Touch Screen Display Menu driven settings for Controlling parameters Setting / RTC accurate Date Time Clock. Pen Drive for saving of data for printing through PC communication. Optional: Special heavy duty air circulating fan system. Online transfer of data without any cable/wire Interference 21 CFR software (for non-editable data) Note : Hot Air Oven is also available in high temperature (300°C) (Model No. OT-HTO-55)

Double walled, Inner chamber made of Stainless Steel 304. Outside Mild Steel painted in epoxy powder coating / stainless steel 304 with wiremesh adjustable shelves, two indicators and on / off Switch. Heating elements are placed in ribs at the bottom and sides. Temperature range Ambient +5°C to 250°C. To work on 220/230 volts A.C. With one number Air circulating Fan & Microprocessor based PID temperature controller. Optional: Special heavy duty air circulating fan system. Microprocessor based touch screen display system with Pen Drive for data logging, printing through PC communication & saving of data in PC. Online transfer of data without any cable/wire Interference 21 CFR software (for non-editable data) Note : Hot Air Oven is also available in high temperature (300°C) (Model No. OT-HTO-55)

The complete soxhlet apparatus consists of solvent reservoir extraction assembly with 3/6 extraction places of various diameter to suit 100ml flasks to 250ml flasks and built in steam generator. Complete with stand, clamp holder soxhlet extraction (condenser) glass and extraction flask of 60 ml volume. Temp. range 50°C to 350°C. Controlled by Sunvic energy regulator. Body is made of Mild Steel Duly Powder Coated/S.S. 304.
