“Optics Technology” Ductless Fume Hood basic offers variety of functionlities. Body is made of Wooden / M.S. Duly Powder Coated / S.S. 304. Eco friendly and cost effective. Mini pleat Hepa Filter of 0.3µ of an efficiency of 99.97% down to 0.3µ media is of glass fiber & made of pleates back & frow & packed in a anodized aluminum frame with carbon filter. Working table is covered with Chemical Resistant Granite. Front door is made of 6mm clear glass in Aluminium Frame duly Powder coated and connected with a counter weight balance through a nylon rope. The door will have the provision of vertical sliding facility. Internal Structure is coated with acid & fire resistance coating. Front door is made of 6mm clear toughened glass with easily sliding of up & down position. Exhaust blower of single phase Electric motor (1 H.P.) with 2500 RPM connected which is inbuilt in the hood. Ventilated base with storage cabinet of selection off drawer & doors. Light luminance of 140 lux with light lamp of anti corrosive. Power Supply: 220 V AC, Single Phase, 50 Hz. Optional: Base storage cabinet Air Flow Monitor (LCD Display). P.P. Sink with Swan Neck Water Tap Automatic motorized front door lifting arrangement. Scrubber System

“Optics Technology” Ductless Fume Hood basic offers variety of functionlities. Body is made of Wooden / M.S. Duly Powder Coated / S.S. 304. Eco friendly and cost effective. Mini pleat Hepa Filter of 0.3µ of an efficiency of 99.97% down to 0.3µ media is of glass fiber & made of pleates back & frow & packed in a anodized aluminum frame with carbon filter. Working table is covered with Chemical Resistant Granite. Front door is made of 6mm clear glass in Aluminium Frame duly Powder coated and connected with a counter weight balance through a nylon rope. The door will have the provision of vertical sliding facility. Internal Structure is coated with acid & fire resistance coating. Front door is made of 6mm clear toughened glass with easily sliding of up & down position. Exhaust blower of single phase Electric motor (1 H.P.) with 2500 RPM connected which is inbuilt in the hood. Ventilated base with storage cabinet of selection off drawer & doors. Light luminance of 140 lux with light lamp of anti corrosive. Power Supply: 220 V AC, Single Phase, 50 Hz. Optional: Base storage cabinet Air Flow Monitor (LCD Display). Touch Screen Model (Air Flow Touch Screen Display) P.P. Sink with Swan Neck Water Tap Automatic motorized front door lifting arrangement. Scrubber System

•Double Walled Construction. •Inner & Outer Made of S.S. 304. •Deluxe Model Heavy Duty with Argon Welding •The gap in between being filled with glass wool. •The condenser & TOP are also made of S.S •To work on 220/230 volts

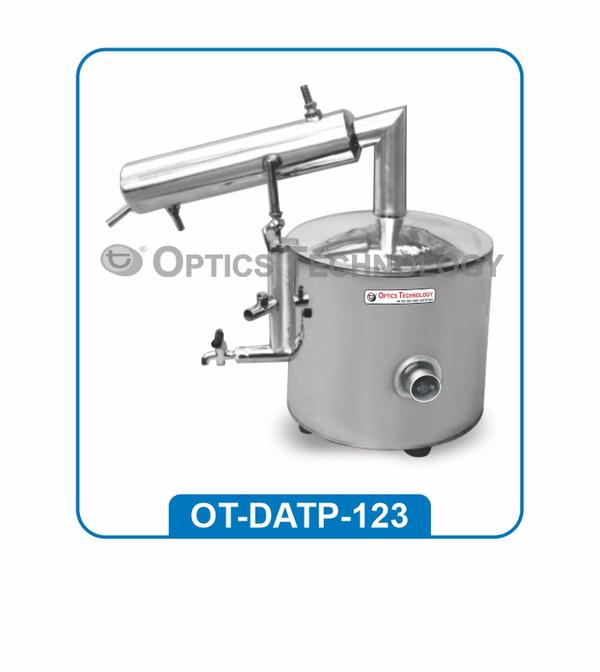

(Deluxe Model Heavy Duty Argon Welded) All parts of Distillation apparatus are made out of stainless steel. It consists of main chamber, condenser tube, condenser jacket, vapour baffle. Optional : Water level cutoff device (For Single Phase) Water level cutoff device (For Three Phase) Note : We recommended to use water level cut-off device for safety of heaters & long life of instruments

Newly designed for all application and process requiring excellent radial and perfect temperature uniformity. Heavy gauge M.S. exterior finished with epoxy powder coated. Light weight laboratory tube furnace have special ceramic fiber insulation. Temp. Controlled by Microprocessor based PID Temp. Controller having digital indication for set and process temperature. The control system includes over temperature solid state safety fuse which cuts the power in case of temperature exceeds. Operates on 230 volts. Max Working Temperature Range: 900°C, 1100°C, 1400°C

Temperature range from room temperature to 100ºC. Temp. is Controlled by Thermostat OR Microprocessor based PID Controller Double walled inside made of stainless steel 304 Quality and outside Mild Steel sheet painted in epoxy powder coating/S.S. 304. Oscillating tray is riding on ball rollers. Shaking speed range 40 to 140 RPM. To work on 220/230 volts A.C. Supply. SHAKING TRAY SIZE INSIDE TRAY MADE OF S.S. 304 Quality Optional: Microprocessor based PID Controller Digital RPM indicator for speed Water level cut off system.

Shaking Movement – Orbital Orbital Diameter (mm) – 4 Speed upto 1200 RPM With Speed Controller (Regulator)

The apparatus is designed to determine the abrasion rate and impact hardness of tablets. One/Two transparent acrylic drums rotated by superior quality constant speed sturdy motor, mounted in painted sheet metal cabinet with chemical resistant epoxy coating. (Body is made of M.S. Duly Powder Coated / S.S. 304). Special Features: Realistic abrasion rate is obtained by pre-set revolutions through a pilot lamp as compared to time setting, where voltage fluctuation may change number of revolution in pre-set time. Specification: Drum Diameter : 285mm Tablet Fall Distance : 140mm Drive : 1/8 HP Power : 230 V AC Single Phase

These are overhead clean air modules mounted with Stainless steel frame on the ground. Units can be built with / without casters so the clean enclosure can be moved over equipment or used to isolate a controlled process. It is basically used for filling, refilling weighing and sampling / Dispensing of Raw Material, Basic Compounds, Active Compounds. It works on the principal of Laminar Air Flow with HEPA Filters & Pre-Filters. This will act as a CLASS 100 Room. Protection of the personnel in the cabinet from the processed substances by vertical flow with Reverse Flow of clean air protection of the raw and intermediate products to be processed. Protection of the room where the cabinet is built up and environment from highly active substance which otherwise would disperse in the room and escape in the atmosphere unfiltered. Safe collection and deposition of substance released during work. Features: • M.S Powder Coated / Stainless Steel 304 Body • Hepa Filter (0.3 Micron) • Fine Filter (5 micron) • Pre-Filter (10 micron) at Arrestance 90% • Motor Blower Assembly • U.V. Light • Fluorescent Lamp Operating Switch • Static Pressure Manometer • Stainless Steel Standing Base • High quality HEPA filter provides protection for the product (filtration • efficiency of more than 99.97% at 0.3 micron). • Ultra-quiet noise level of not more than 65 dBA. • Durable and easy to clean stainless steel body. • Work area properly illuminated by diffused glare free fluorescent light. PVC Flexible Curtains on all the three sides. Specifications: Air Velocity : 90 ± 20 FPM (Average) Filtration Elements : Main Filters - HEPA Filter Prefilter : Washable non-woven polyester fibers. Light Intensity : 800-1000 Lux Power Supply : 220V Single Phase, 50 Hz. Model No. Working Size W x D x H OT-SB-215-MS/SS-A 2' X 2' X 6' OT-SB-215-MS/SS-B 3' X 2' X 6' OT-SB-215-MS/SS-C 3' X 3' X 6' OT-SB-215-MS/SS-D 4' X 2' X 6' OT-SB-215-MS/SS-E 4' X 3' X 6' OT-SB-215-MS/SS-G 6' X 4' X 6' OT-SB-215-MS/SS-H 6' X 6' X 6' OT-SB-215-MS/SS-I 8' X 4' X 6' OT-SB-215-MS/SS-J 8' X 6' X 6' OT-SB-215-MS/SS-K 8' X 8' X 6'
