It consist of an inbuilt prefilter & very high exchanging capacity non-corrosive CATION & ANION Resin, columns prefilled with imported Resins for efficient results having treated water parameters. Fitted with a sturdy PVC multi control valve & can be connected direct to water taps. Fitted with analog / digital conductivity meter. Supplied with one plastic chemical proof regeneration tank & the complete unit is housed in a painted M.S. trolly for easy mobility. Features: • Digital Display • Non corrosive Regeneration Tank •In Built Pre filter High capacity Cation and Anion exchange resins. Upflow treatment. Easily portable - metal stand and trolley Can be connected direct to Water Tap. Simple Periodic regeneration - negligible operating costs. Digital model is fitted with digital conductivity meter. Treated water will have the conductivity less than 10 ms/cm and pH of 7.5-9 • Available in Double Bed, Four bed and Mixed bed models Capacity: 50 Ltrs / Hr. 70 Ltrs / Hr. 100 Ltrs / Hr. 200 Ltrs / Hr. 500 Ltrs / Hr.

Fitted with D.C. MOTOR But to work on 220 Volts A.C with Variable Speed from 20 R.P.M to 100 R.P.M approx. Jar Test Apparatus allows efficient and economical flocculation matter and collides in general and also has been specially designed for use in water treatments to correctly estimate the dosing of alum and such other coagulants for treatment of Water sewage and floc formation test in Water Treatment plants.

(MICROPROCESSOR BASED) Condenser Temp. (-) 40 °C / (-) 70 °C or better (at ambient temp. of 20 °C) PUF INSULATED, CFC Free Compressor, Drying Manifold (S.S 304) ½” and ¾”. Direct Drive Vacuum Pump 100Ltrs Minimum capacity, continuous display Temp. Indicator (LED Display), Digital Type Pirani Gauge, Housed in a Super Structure frame with wheel based.

(LAB MODEL) Condenser Temp. (-) 40 °C / (-) 70 °C or better (at ambient temp. of 20°C ) PUF INSULATED, CFC Free Compressor, Drying Manifold (S.S 304) ½” and ¾”. Direct Drive Vacuum Pump 100 Ltrs. Minimum capacity, continuous display Temp. Indicator (LED Display), Digital Type Pirani Gauge, Housed in a Super Structure frame with wheel based. Optional: Digital Vacuum Indicator Microprocessor based LCD display system for vacuum and temperature

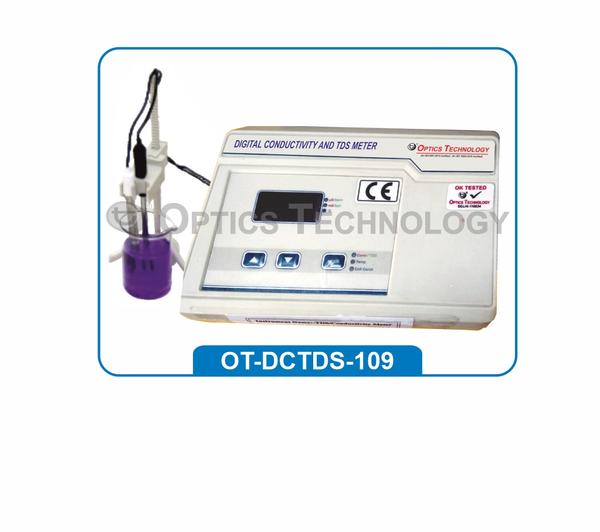

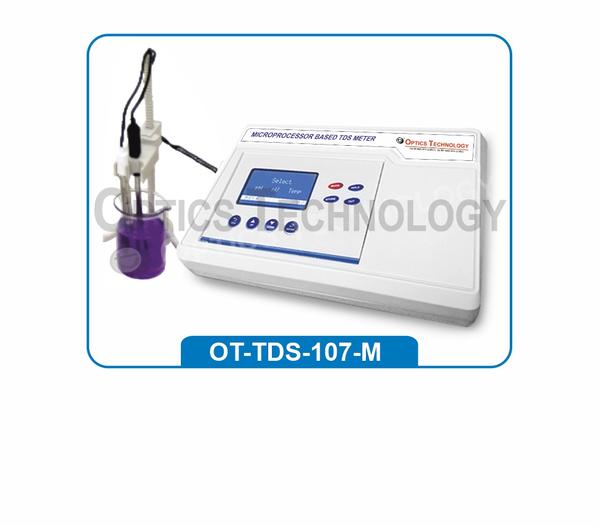

Features • 128 x 64 dots Graphical LCD Display •Auto Temperature Compensation Auto Ranging Facility • 1000 Samples Storage Facility Printer Attachment Facility Conductivity, TDS & Temp. Measurements Accuracy 0.5% FS1Digit

DETAILS Display Resolution 0.1μS/cm in lowest range CONDUCTIVITY 32 Digit bright red LED display 0.1ppm in lowest range TDS Accuracy ±0.5% FS± 1 digit Ranges 0 to 200μS/cm 0 to 200ppm 0 to 2mS/cm 0 to 2ppt O to 20mS/cm 0 to 200mS/cm 0 to 1000mS/cm 0 to 20ppt 0 to 200ppt 0 to 1000ppt

Ranges 0 to 0.2 mS/cm 0 to 2 mS/cm 0 to 20 mS/cm 0 to 200 mS/cm 0 to 1000 mS/cm Accuracy ±1% FS± 1Digit (0 to 200 μS/cm) (0 to 2000 μS/cm) (0 to 20000 μS/cm) (0 to 200000 μS/cm) (0 to 1000000 μS/cm)

HEPA Filter: 0.3 μ down to 99.97% Pre Filter : 10 μ Statics Pressure Manometer U.V. Light. Statically Balanced motor blower Assembly (Heavy Duty) Electronic Interlock System Very Less Electrical Load Energy Efficient Blowers Optional: Magnehelic Gauge. LCD Display with soft touch switches

Air Flow: Vertical With Working table of S. S. 304 Body is made of Wooden/ M.S. Duly Powder Coated/ S.S. 304 Imported Mini Pleat HEPA Filter of 0.3µ of an efficiency of 99.97% down to 0.3µ media is of glass fiber & made of pleats back & frown in a anodized Aluminum frame. Prefilter of dry fiber washable type with the frame of on all the sides Confirm the international standards 209 E. Class 100 (As per USFED-STD. 209E) ISO Class 5 (As per ISO-14644.1), IEC 61010-1:2010, ISO 29463-5:2022 Statically Balanced motor blower Assembly (Heavy Duty) Velocity at the output of HEPA is 90 ± 20 FPM Noise level is very low Vibration is also very low Normal working fluorescent Light Static pressure Manometer U. V. Light 1 x 30/15 watts Front Door of Acrylic Sheet (Transparent) Gas cock Or any non standard size Optional: Magnahelic Gauge in place of Static Pressure Manometer. Digital Manometer U.V. Resistant Poly Carbonate sheet in place of Acrylic Sheet. Automatic Safety system for U.V. light. Automatic start system filtered Air & Normal light in Laminar Air Flow LCD display with soft touch switches for Motor, U.V. Light, F.V. Light & U.V. Timer Automatic motorised front door lifting arrangement Online transfer of data without any cable/wire Interference MICROPROCESSOR BASED TOUCH SCREEN DISPLAY SYSTEM Display of velocity with lower and upper safe limits. Display of total run time of instrument & timer for U.V. lamp Control of U.V. light to prevent the operator from U.V. rays as and when required. Automatic Door sensors to switch off the U.V. light when door is opened. Display of message for life of HEPA filter, U.V. light etc.
